P0121-Throttle Position Sensor 1 Performance: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .

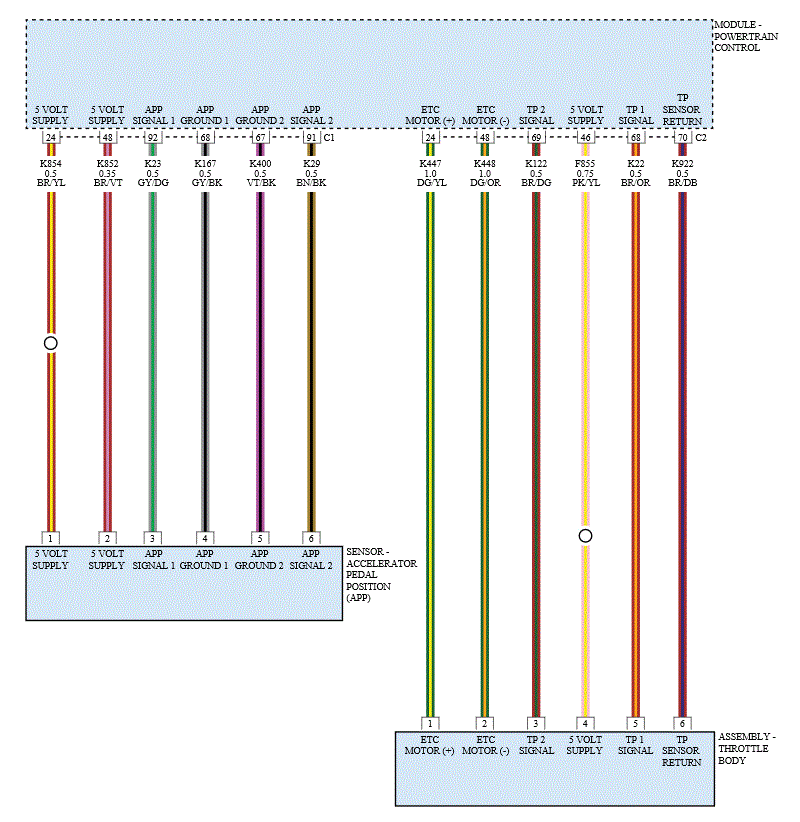

Fig 1: PCM To APP Sensor And Throttle Body - Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
