Coolant Level Check

Courtesy of CHRYSLER GROUP, LLC

Do not remove pressure bottle cap for routine coolant level inspections.

The coolant pressure bottle provides a quick visual method for determining the coolant level without removing the pressure cap.

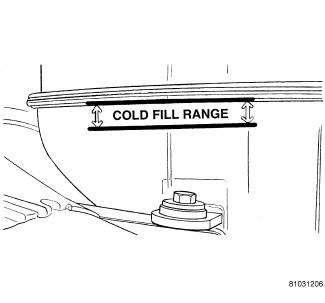

With the engine cold, the coolant level in the coolant pressure bottle should be in the COLD FILL RANGE.

With the engine warmed up, the coolant level should be above the COLD FILL RANGE.
