Shield, Heat: Installation

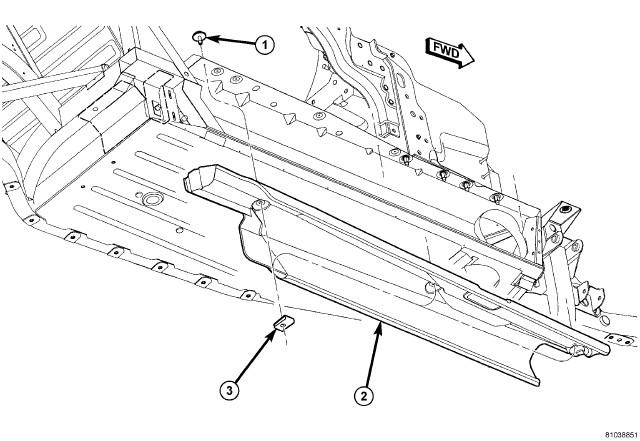

| 1 - SCREW(S) |
| 2 - INNER SILL HEAT SHIELD |
| 3 - U NUT |
| 4 - PEEL AND STICK HEAT SHIELD |
NOTE:
Check the heat shield for contact with the body and/or exhaust, and adjust as necessary before installing the rivets.
- Position the inner sill heat shield, and install new rivets.
- Install resonator. Refer to RESONATOR, EXHAUST, INSTALLATION .
