Pump, Water: Removal

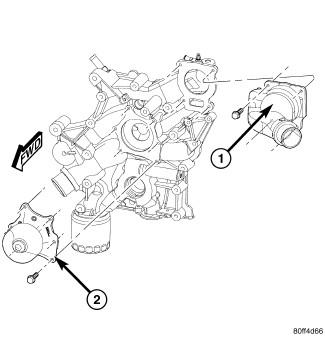

| 1 - THERMOSTAT HOUSING |
| 2 - WATER PUMP |
- Drain the cooling system. Refer to DRAINING COOLING SYSTEM .
- Disconnect the throttle body air inlet hose, remove the air cleaner housing assembly. Refer to BODY, AIR CLEANER, REMOVAL .
- Remove the accessory drive belt. Refer to BELT, SERPENTINE, REMOVAL .
- Remove the water pump attaching bolts in the reverse order of the torque sequence. Refer to PUMP, WATER, INSTALLATION .
- Remove the water pump.
- Remove and discard the water pump gasket.
