Sensor, Differential Pressure: Installation

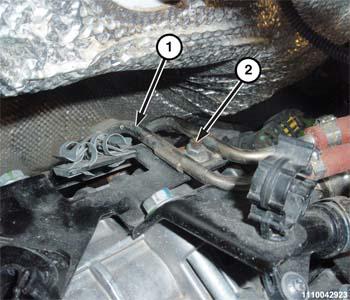

GC0161955Courtesy of CHRYSLER GROUP, LLC
  1. If remove, install the differential pressure sensor tubing (1). Tighten nut (2) to 9 N.m (80 in. lbs.).

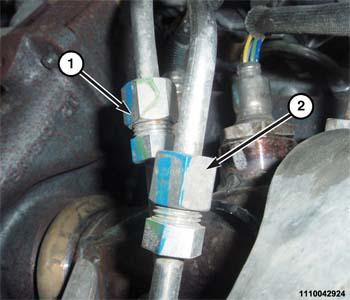

    GC0162167Courtesy of CHRYSLER GROUP, LLC
  2. If removed, tighten the differential pressure sensor tube union nuts (1, 2) to 20 N.m (177 in. lbs.).

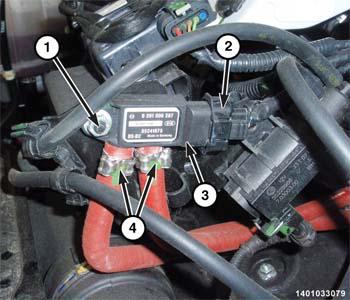

    GC0161866Courtesy of CHRYSLER GROUP, LLC
  3. Install the differential pressure sensor vacuum hoses (4).
  4. Install the differential pressure sensor (3). Tighten nut (1) 6 N.m 53 in. lbs.).
  5. Connect the differential pressure sensor wire harness connector (2).
  6. Connect the negative battery cable.
