Sensor, Oxygen: Installation

GC0162100Courtesy of CHRYSLER GROUP, LLC
  1. Install the oxygen sensor (3). Tighten sensor to 50 N.m (37 ft. lbs.).

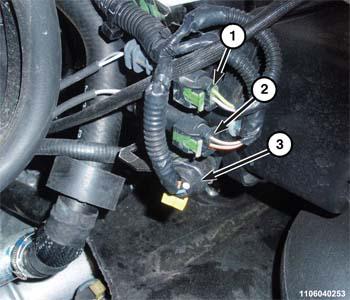

    GC0161796Courtesy of CHRYSLER GROUP, LLC
  2. Connect the oxygen sensor wire harness connector (3).
  3. Install the EGR cooler. Refer to COOLER, EXHAUST GAS RECIRCULATION (EGR), INSTALLATION .
  4. Connect the negative battery cable.
