Module, Fuel Pump: Installation

Courtesy of CHRYSLER GROUP, LLC

Install new fuel pump module O-ring to fuel tank.
CAUTION:
The fuel pump module must be installed correctly to prevent damage to the fuel pump module.
Line up the fuel pump module mounting tab to the arrow on the fuel tank.

Courtesy of CHRYSLER GROUP, LLC
Install fuel pump module lock ring.
Install fuel pump module lock ring tool (special tool #9340, SAE Fuel Pump Lock Ring Wrench) and turn clockwise until the fuel pump module lock ring (1) is seated and locked to fuel tank.

Courtesy of CHRYSLER GROUP, LLC

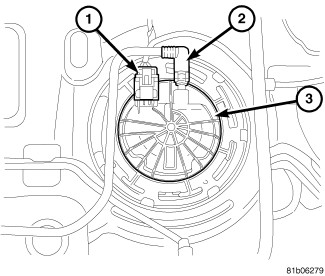

Connect fuel line (2) quick connect to fuel pump module (3).
Connect electrical connector (1) to fuel pump module (3).

Courtesy of CHRYSLER GROUP, LLC

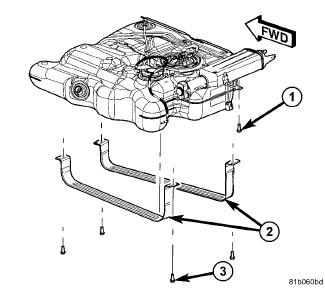

Install fuel tank. Refer to TANK, FUEL, INSTALLATION .
