Module, Wireless Charging Pad: Installation

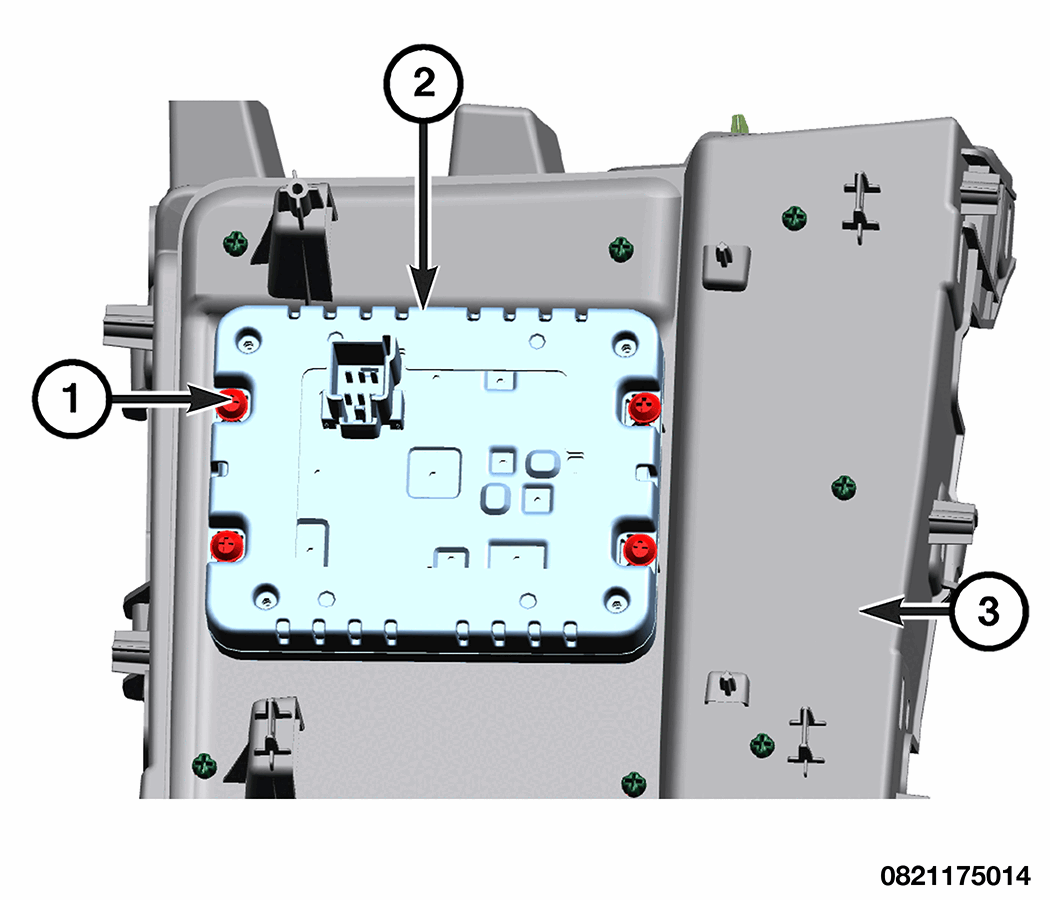

GC0200444Courtesy of CHRYSLER GROUP, LLC
  1. Position the wireless charging pad module (2) to the bottom side of the wireless charging pad bracket (3).
  2. Install the fasteners (1) and tighten securely.

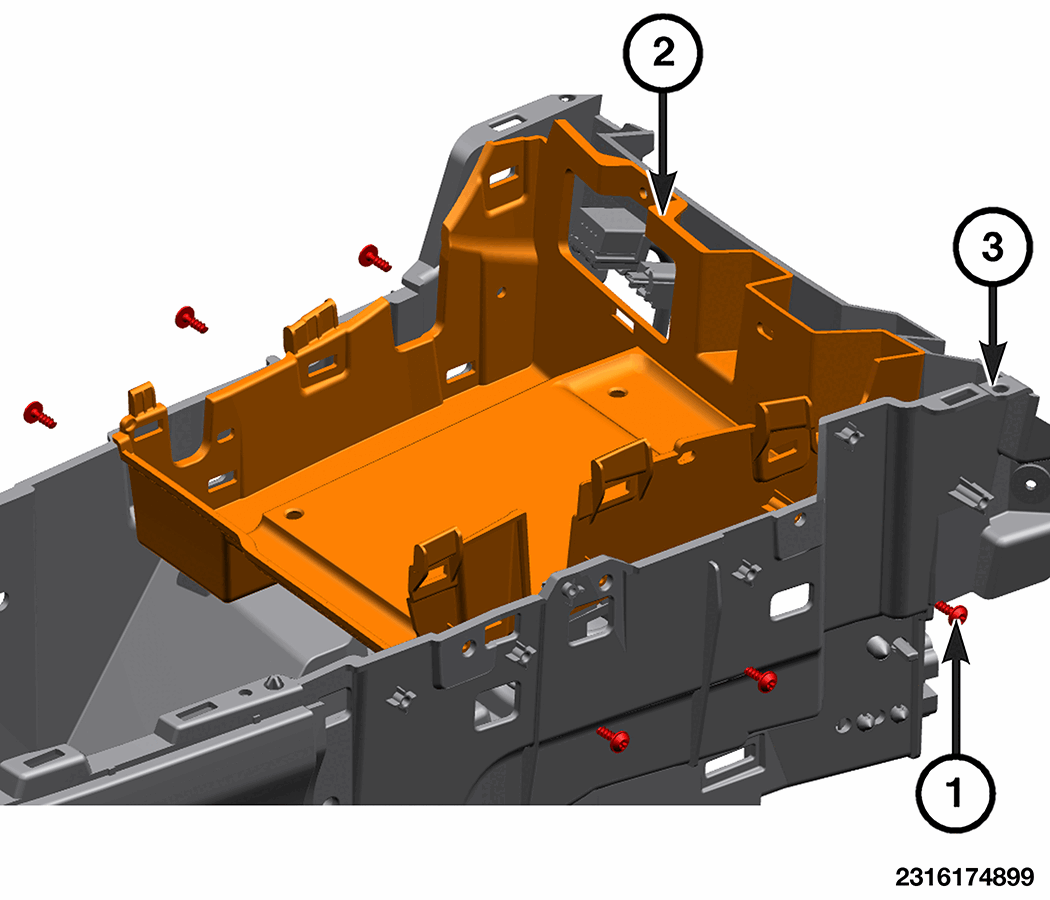

    GC0200439Courtesy of CHRYSLER GROUP, LLC
  3. Position the wireless charging pad bracket (2) to the floor console (3) and connect the wire harness connector.
  4. Install the wireless charging pad bracket (2) into the floor console (3). Verify the retaining clips are fully engaged.
  5. Install the fasteners (1) and tighten securely.
  6. Install the Shifter Bezel. Refer to BEZEL, SHIFTER, INSTALLATION .
  7. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
