Module, Power Inverter: Removal

WARNING: This page is about a different car, the 2022 RAM ProMaster 3500, 2022 RAM ProMaster 2500, and 2022 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL .

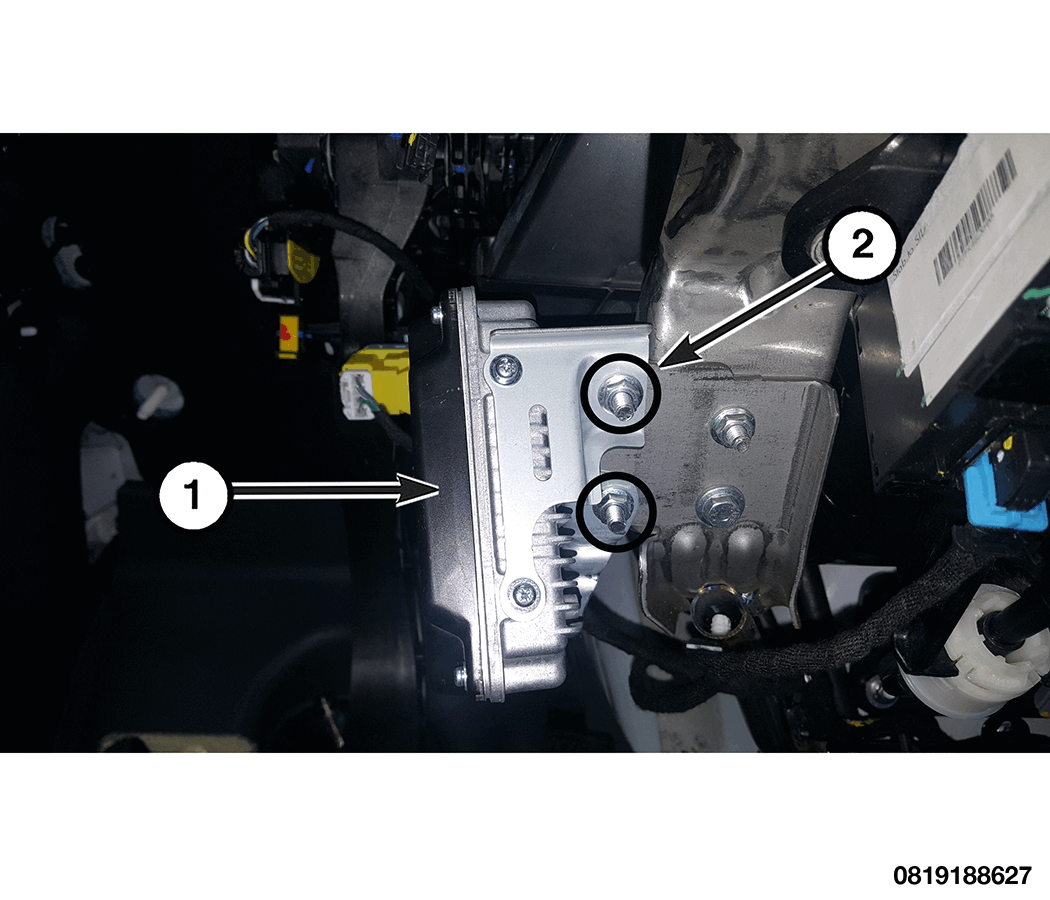

    GC0204109Courtesy of CHRYSLER GROUP, LLC
  3. Remove the fasteners (2) that secure the Power Inverter Module (PIM) bracket to the instrument panel carrier.
  4. Disconnect the wire harness connector(s) and remove the PIM (1) from the vehicle.
  5. If necessary, remove the fasteners that secure the PIM bracket to the PIM. Remove the PIM from the mounting bracket.
