Switch, Speed Control: Description

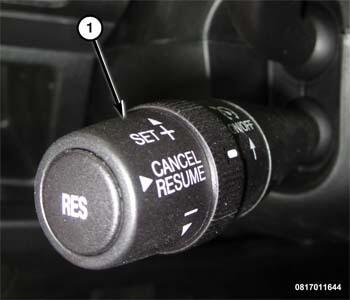

The speed control switch (1) is located on the left stalk on the steering column. This switch uses four switch controls and is used on all vehicles equipped with the speed control (also known as cruise control) system. The only visible components of the switch are the push and rotary switches. The remainder of the switch including its mounting provisions and its electrical connection are concealed within the steering wheel.
Each switch selection has an International Control and Display Symbol graphics or text applied to it, which clearly identify the function of the switches.
The speed control switch cannot be adjusted or repaired. If any function of the switch is inoperative or damaged, the stalk unit must be replaced.
