Switch, Power Window: Removal

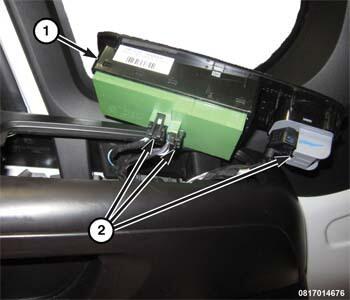

GC0160487Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect the negative battery cable from the battery.
  2. Using a trim stick, work on the end of the door switch bezel (1) and pull up.
  3. Disconnect the three connectors (2) from the switch bank.
  4. Remove the switch bank from the vehicle.
