Tray, Battery: Installation

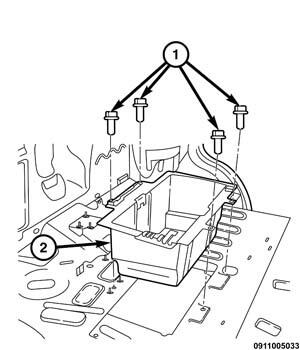

GC0160519Courtesy of CHRYSLER GROUP, LLC
  1. Position the battery tray into the floor of the vehicle and tighten the fasteners (1) to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  2. Install the battery. Refer to BATTERY, INSTALLATION .
  3. Connect the battery negative cable.
