Fan, Cooling: Installation

WARNING: This page is about a different car, the 2022 RAM ProMaster 3500, 2022 RAM ProMaster 2500, and 2022 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
GC0160412Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install the harness (1) onto the cooling fan.
    GC0160702Courtesy of CHRYSLER GROUP, LLC
  2. If required, connect the cooling fan wire harness connectors to the cooling fan relays (1), the resistors (2) and the cooling fan motors (3).
    GC0145992Courtesy of CHRYSLER GROUP, LLC
  3. Install the cooling fan (3) from the top.
  4. Position the radiator cooling fan (3) into mounts and attaching clips (2) on the radiator. Press down to lock into place.

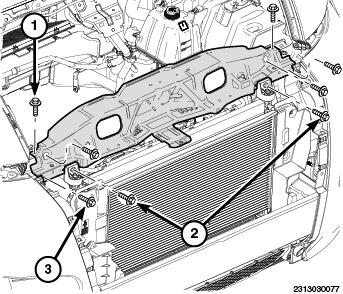

    GC0160600Courtesy of CHRYSLER GROUP, LLC
  5. Install the crossmember and tighten the front four bolts (3) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  6. Install the top bolts (1) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  7. Install the radiator support bolts (2) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS .

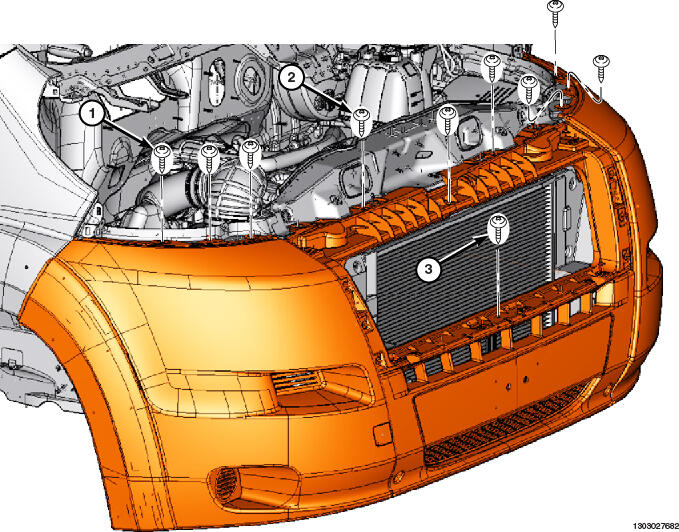

    GC0160444Courtesy of CHRYSLER GROUP, LLC
  8. Install the side (1) and upper (2, 3) fasteners to the front fascia and securely tighten.
  9. Install the front grille. Refer to GRILLE, INSTALLATION .
    GC0157476Courtesy of CHRYSLER GROUP, LLC
  10. Connect the upper radiator hose (3) to the radiator.
  11. Connect the two cooling fan wire harness connectors to the Power Distribution Center (PDC).
  12. Turn the PDC over and position back in place.
  13. Install the PDC cover and securely tighten the nuts.
  14. Install the pressurized coolant bottle bracket and securely tighten the pressurized coolant bottle bracket bolts.
    GC0157472Courtesy of CHRYSLER GROUP, LLC
  15. Install the pressurized coolant bottle (3) and tighten the pressurized coolant bottle bolt (6) to the proper specifications. Refer to TORQUE SPECIFICATIONS .
  16. Install the air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
  17. Install the air cleaner resonator. Refer to RESONATOR, AIR CLEANER, INSTALLATION .
  18. Install the three retainers securing the coolant hose to the cooling fan.
  19. Install the cooling fan ground wire to the left frame rail and securely tighten the nut.
  20. Install the right lower splash shield.
  21. Install the tire and wheel assembly. Refer to INSTALLATION .
  22. Remove support and lower the vehicle.
  23. Fill cooling system. Refer to the appropriate service information.
  24. Start and warm the engine and check for leaks.
