Checking The Map Sensor Performance - 2.4L: Notes

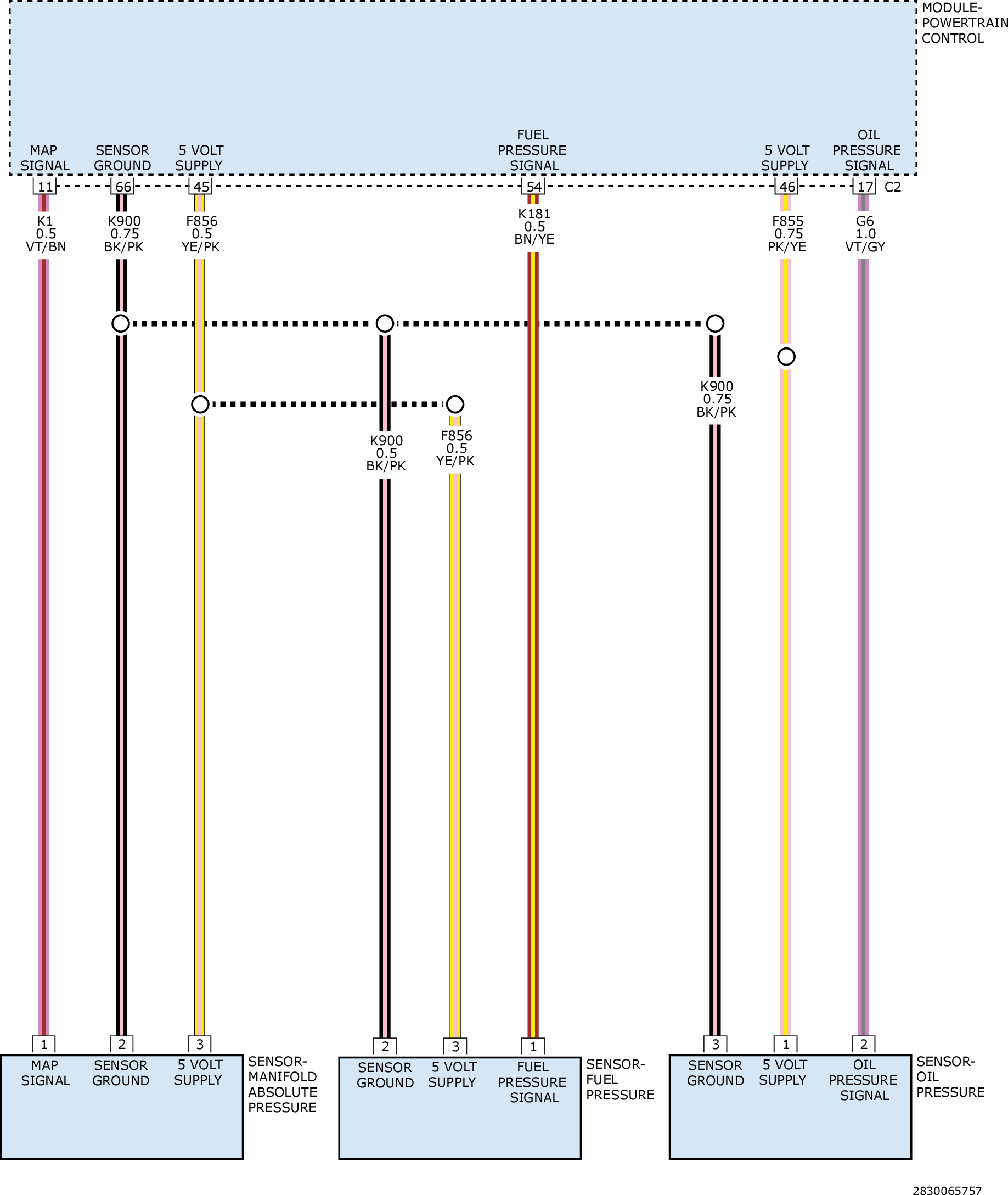

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAM  .

GC0168440Courtesy of CHRYSLER GROUP, LLC
