Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.

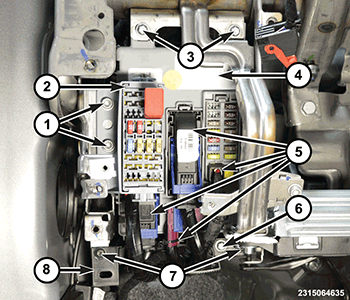

- From under the driver side of the instrument panel, connect the wire harness connectors to the back side of the BCM (4).
- Install the upper fasteners (3) loosely.
- Connect the wire harness connectors (5) to the BCM.
- Install the fuse junction block (2) and tighten the fasteners (1) securely.
- Install the wire harness bracket (8) and tighten the fasteners (7) securely.
- Install the fasteners (6) and tighten securely.
- Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
