Removal And Installation: Installation
WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.
- Position the gear shifter in the vehicle.

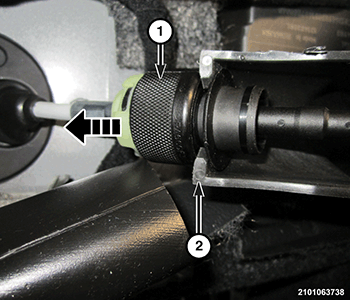

- Pull on the shifter cable knurled ring (1) while installing the cable into the shifter housing (2).

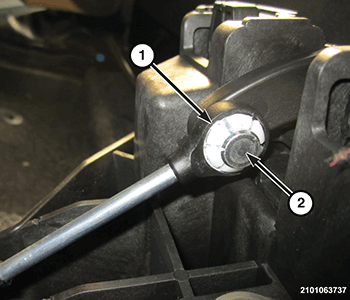

- Push the shifter cable end (1) onto the shifter assembly pin (2).
- Hand start the upper and lower right side shifter mounting fasteners.

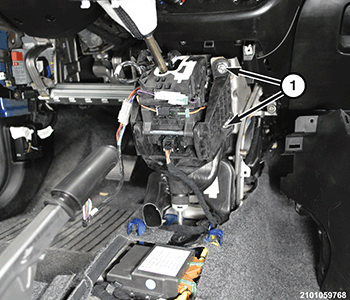

- Install the upper and lower left side shifter mounting fasteners (1) and tighten them to the proper specification. Refer to TORQUE SPECIFICATIONS .

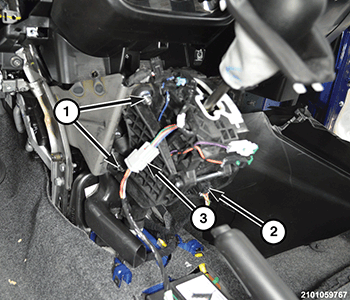

- Connect the wire harness connectors (2, 3) to the shifter assembly.
- Install the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
- If necessary, adjust the shifter cable. Refer to CABLE, SHIFT, ADJUSTMENTS .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
