Removal And Installation: Removal
WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

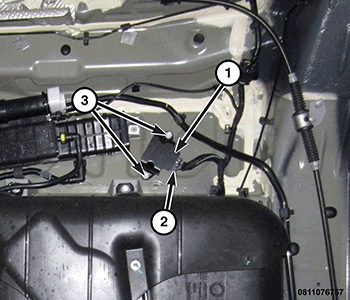

- Disconnect the fuel pump control module wire harness connector (2).
- Remove the fuel pump control module bracket mounting bolts (3).
- Remove the fuel pump control module (1) from the mounting bracket.
