Removal And Installation: Removal

WARNING: This page is about a different car, the 2020 RAM ProMaster City. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the clean air hose. Refer to HOSE, CLEAN AIR, REMOVAL AND INSTALLATION .

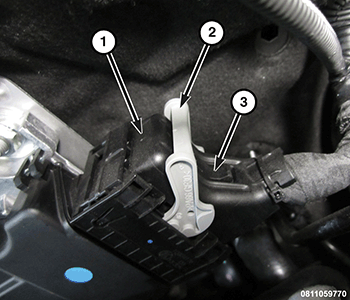

    GC0171880Courtesy of CHRYSLER GROUP, LLC
  3. Depress the locking tab (3) while pulling down on the bail (2) to release the wire harness connector (1) from the Transmission Control Module (TCM).

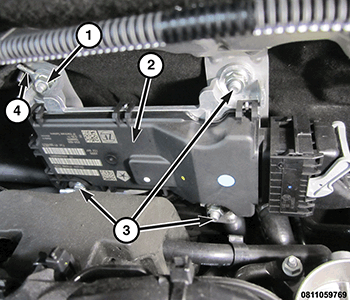

    GC0171470Courtesy of CHRYSLER GROUP, LLC
  4. Remove the TCM nut (1) holding the ground wire (4) to the mounting bracket.
  5. Remove the remaining TCM mounting nuts (3).
  6. Separate the TCM (2) from the vehicle.
