Removal And Installation: Installation

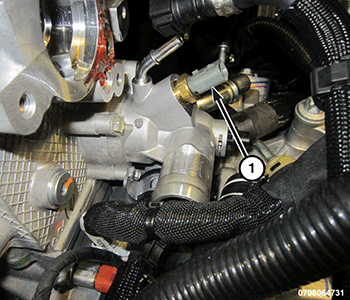

GC0171195Courtesy of CHRYSLER GROUP, LLC
  1. Install the engine coolant temperature sensor (1) and tighten the sensor to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .

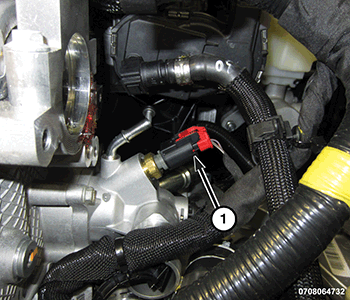

    GC0171922Courtesy of CHRYSLER GROUP, LLC
  2. Connect and lock the Engine Coolant Temperature (ECT) sensor wire harness connector (1).
    GC0172014Courtesy of CHRYSLER GROUP, LLC
  3. Install the lower radiator hose (1) and fill the cooling system. Refer to FILLING THE COOLING SYSTEM  .
  4. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
  6. Run the engine until it reaches normal operating temperature. Check cooling system for leaks and correct fluid level. Refer to STANDARD PROCEDURE .
  7. Install the engine cover. Refer to COVER, ENGINE, REMOVAL AND INSTALLATION .
  8. Remove the support and lower the vehicle.
