Air Temperature Sensor ( Ambient / Intake ): Service and Repair

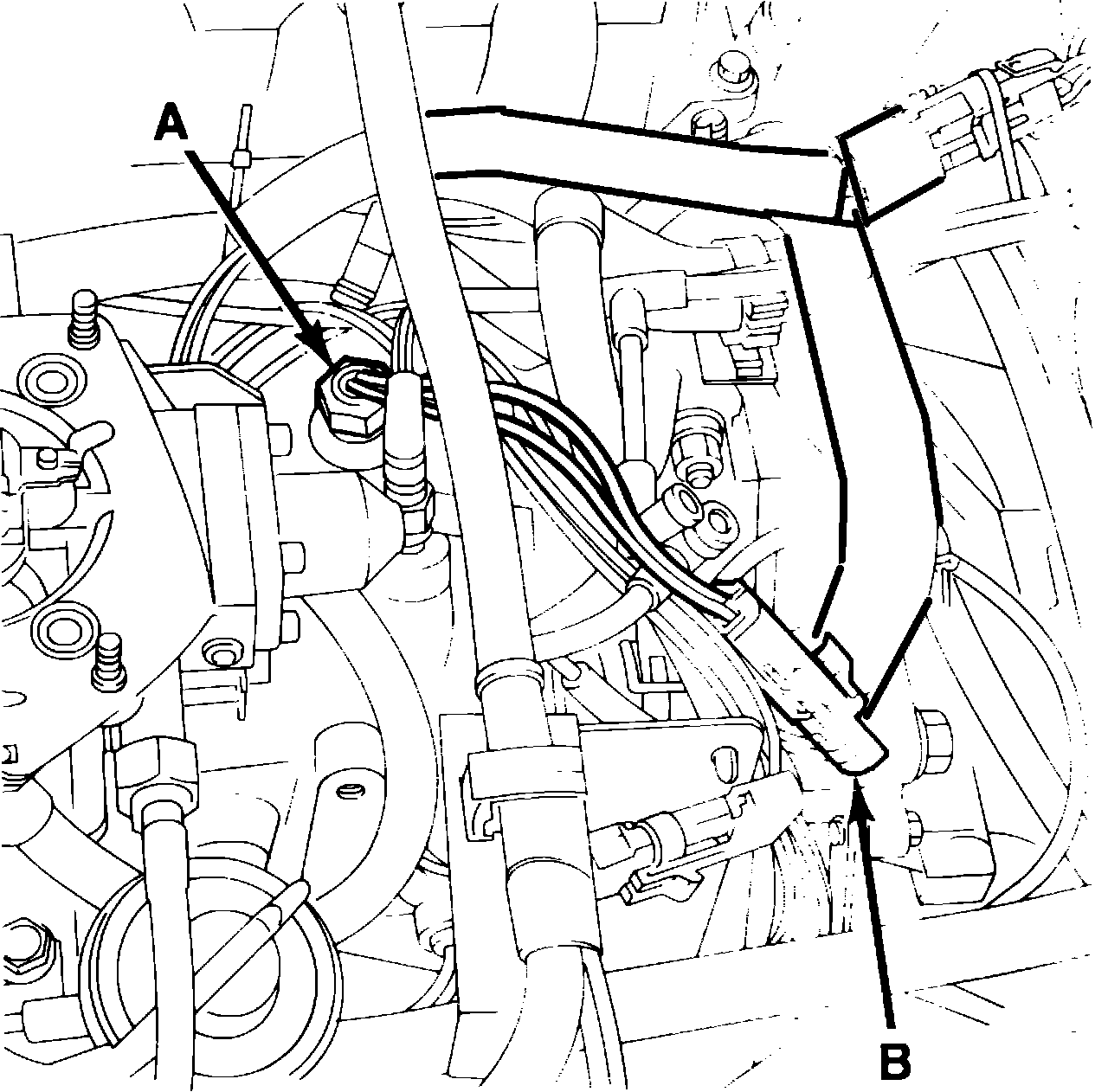

Fig. 8 Manifold Air Temperature (MAT) Sensor:

1. Disconnect MAT sensor electrical connector (B), then unscrew MAT sensor (A) from intake manifold, Fig. 8.
2. Reverse procedure to install. Torque sensor to 21 ft. lbs.
