Data Link Connector: Locations

Diagnostic Connector Locations:

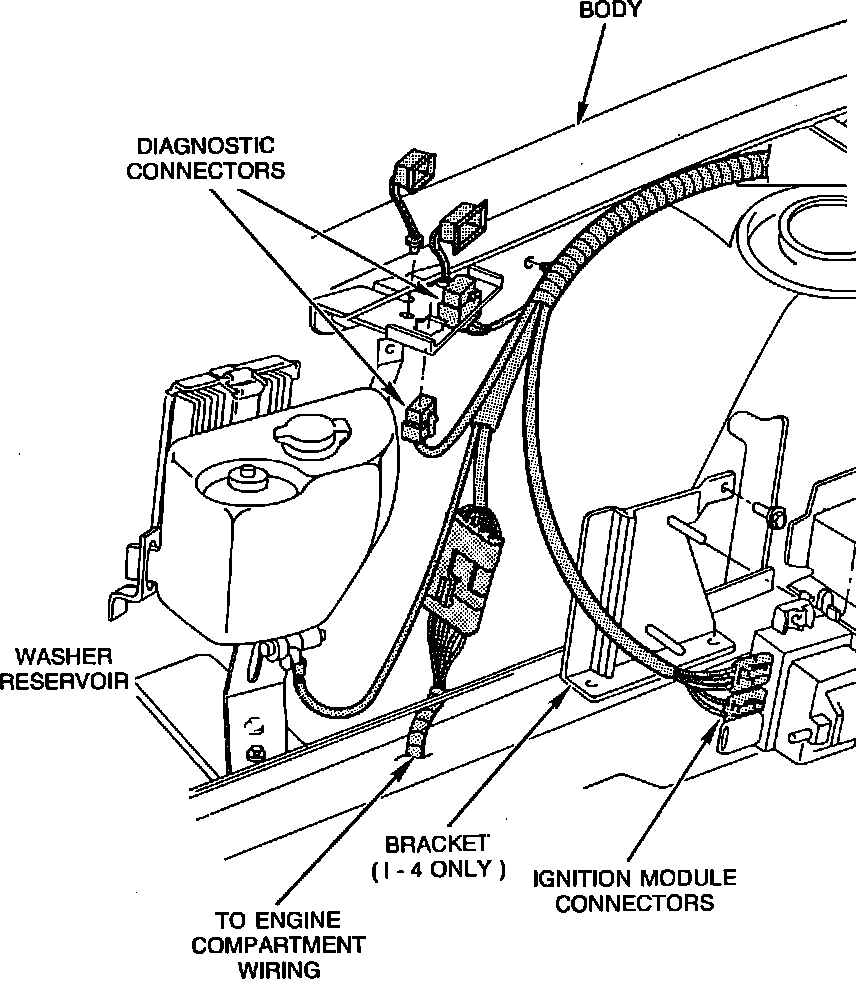

The Diagnostic Connectors are found on the right side of the engine compartment, next to the washer reservoir, and are protected by yellow covers.
