Knock Sensor: Service and Repair

Knock Sensor:

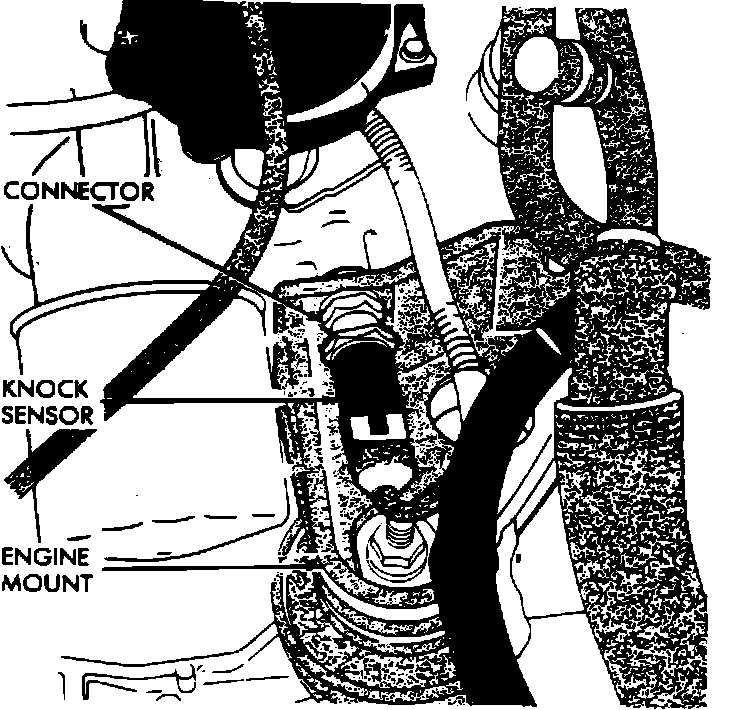

REMOVAL

1. Disconnect electrical connector from Knock Sensor.
2. Remove Knock Sensor from connector on engine mount.


INSTALLATION



1. Install Knock Sensor and torque to 89 lb. in. (10 N-m).
CAUTION: Installation torque is critical to knock sensor operation. Make sure that sensor is torqued correctly.
2. Install electrical connector to Knock Sensor.
