Oxygen Sensor

Catalytic Converter:

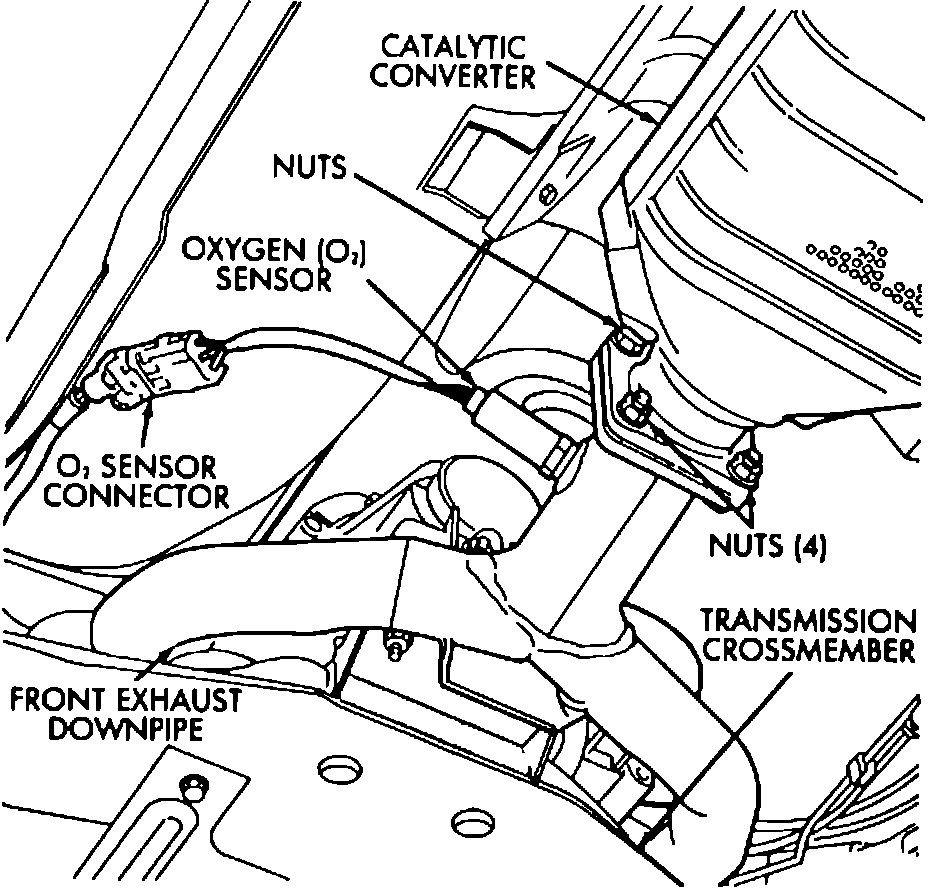

OXYGEN SENSOR
Using the proper removal tool, remove the oxygen sensor. Clean the threads in the exhaust manifold with a tap before installing the oxygen sensor. Coat oxygen sensor threads with a nickel based anti-seize compound. Do not use graphite or other anti-seize compounds.
