Control Module: Service and Repair

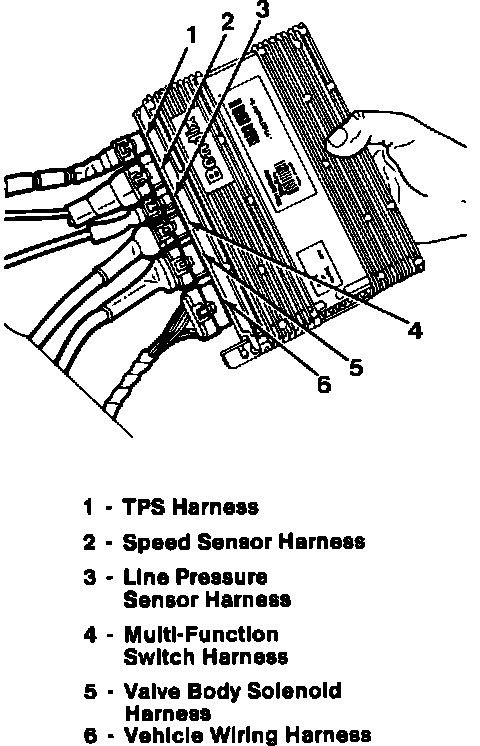

Fig. 2 Transmission Control Unit (TCU) & Sensor Harness Locations:





1. Remove windshield washer bottle.
2. Unfasten strap that secures TCU to inner fender panel.
3. Mark sensor harnesses for installation reference, then disconnect harnesses from TCU, Fig. 2, and remove unit.
4. Reverse procedure to install.
