Control Module HVAC: Locations

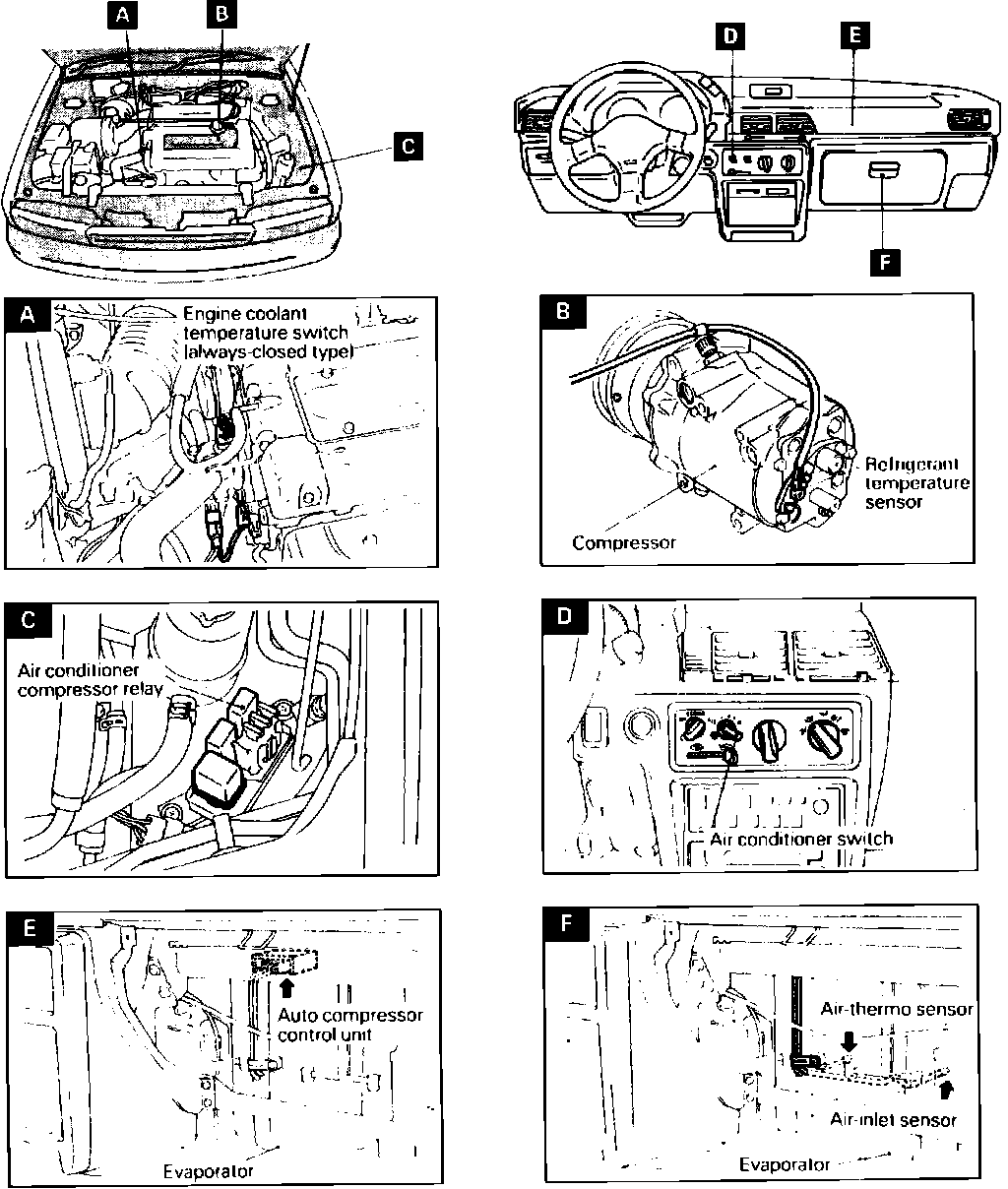

A/C Control System Component Locations.:




Behind RH Side Of I/P

Applicable to: Colt & Summit
