Vehicle Speed Sensor

The vehicle speed sensor is mounted on side of transaxle. Vehicle speed sensor provides an input to the transmission control module. The ECU adjusts fuel delivery in response to vehicle speed sensor signal and other inputs.

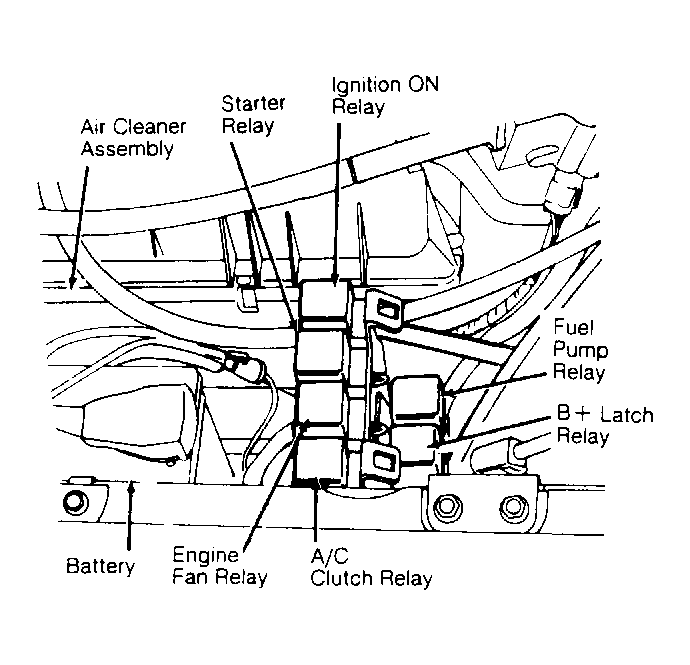

Fig 1: Relay Cluster Identification (Monaco & Premier 3.0L)
G90G03214Courtesy of CHRYSLER MOTORS.
