Seat Belt Control Module

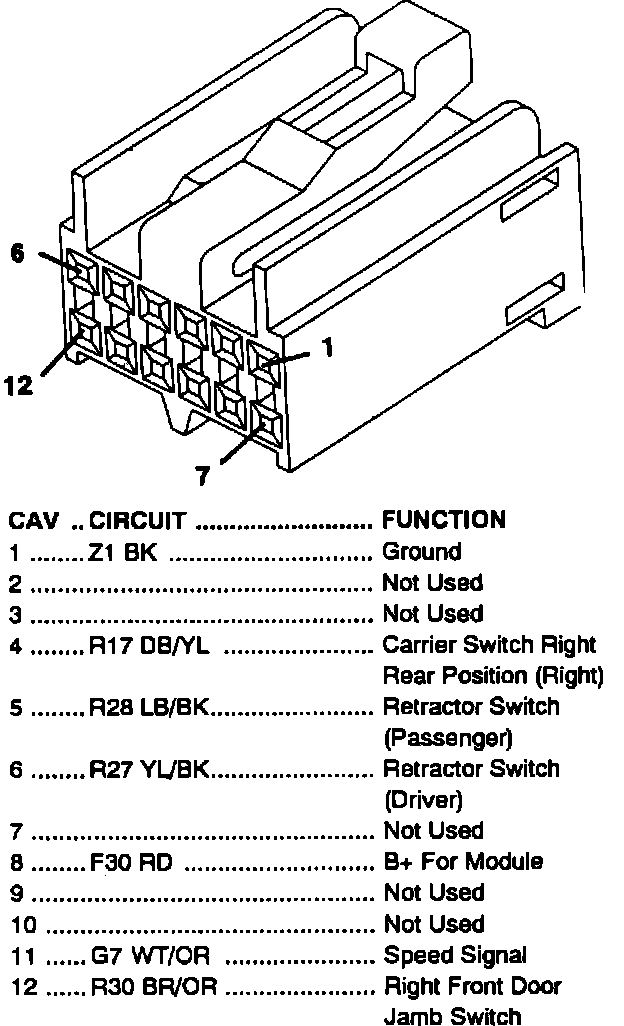

Fig. 75 Passive Restraint Module. Black 12 Way Connector:

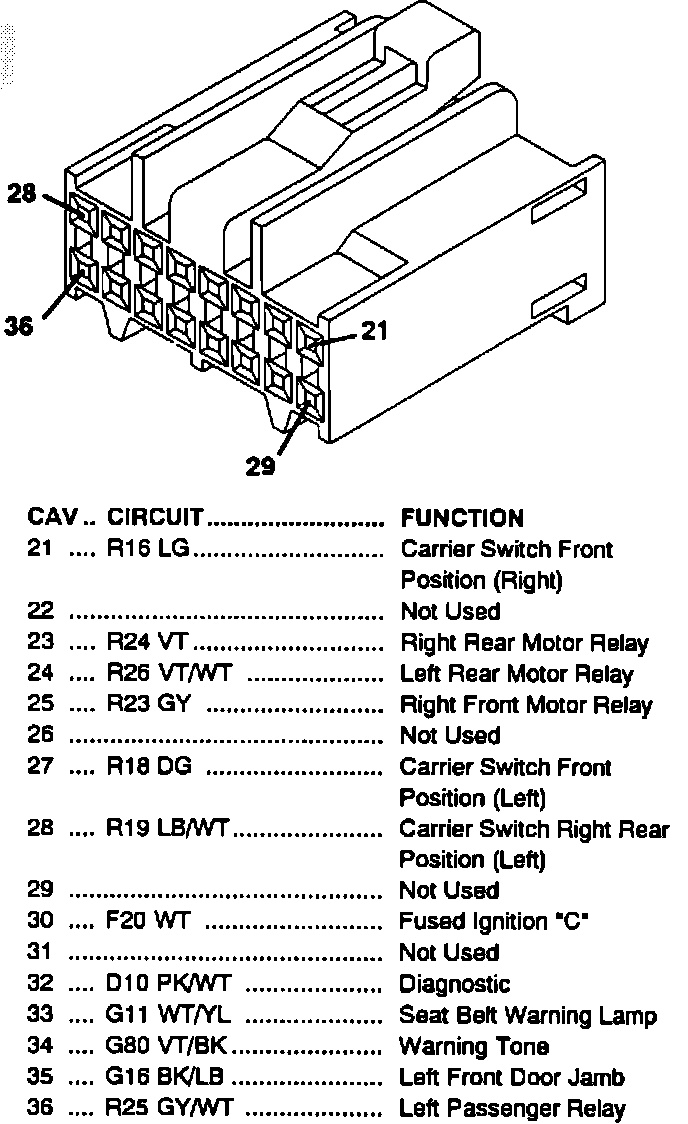

Fig. 76 Passive Restraint Module. Black 16 Way Connector:



Fig. 77 Passive Restraint Module. Diagnostic Connector:
