For auto-cruise control unit signal circuit terminals, see Fig 1
. Disconnect the connector of the auto-cruise control unit, and then check at the body side wiring harness according to the chart. See Fig 2
and Fig 3
.
Fig 1: Identifying Auto-Cruise Control Unit Connector Terminals
Courtesy of CHRYSLER CORP.

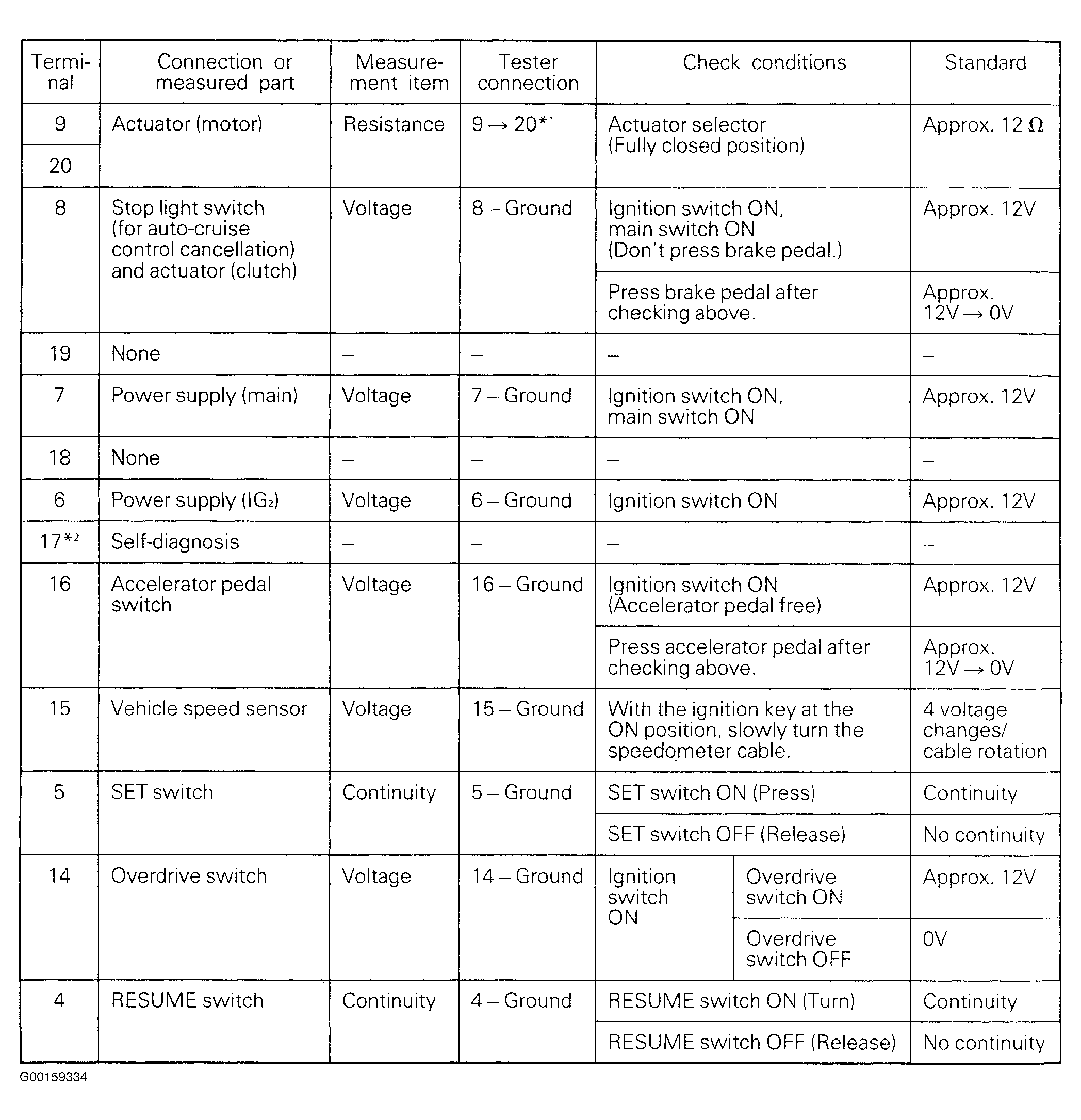

Fig 2: Identifying Identifying Auto-Cruise Control Circuit Values (1 Of 2)
Courtesy of CHRYSLER CORP.

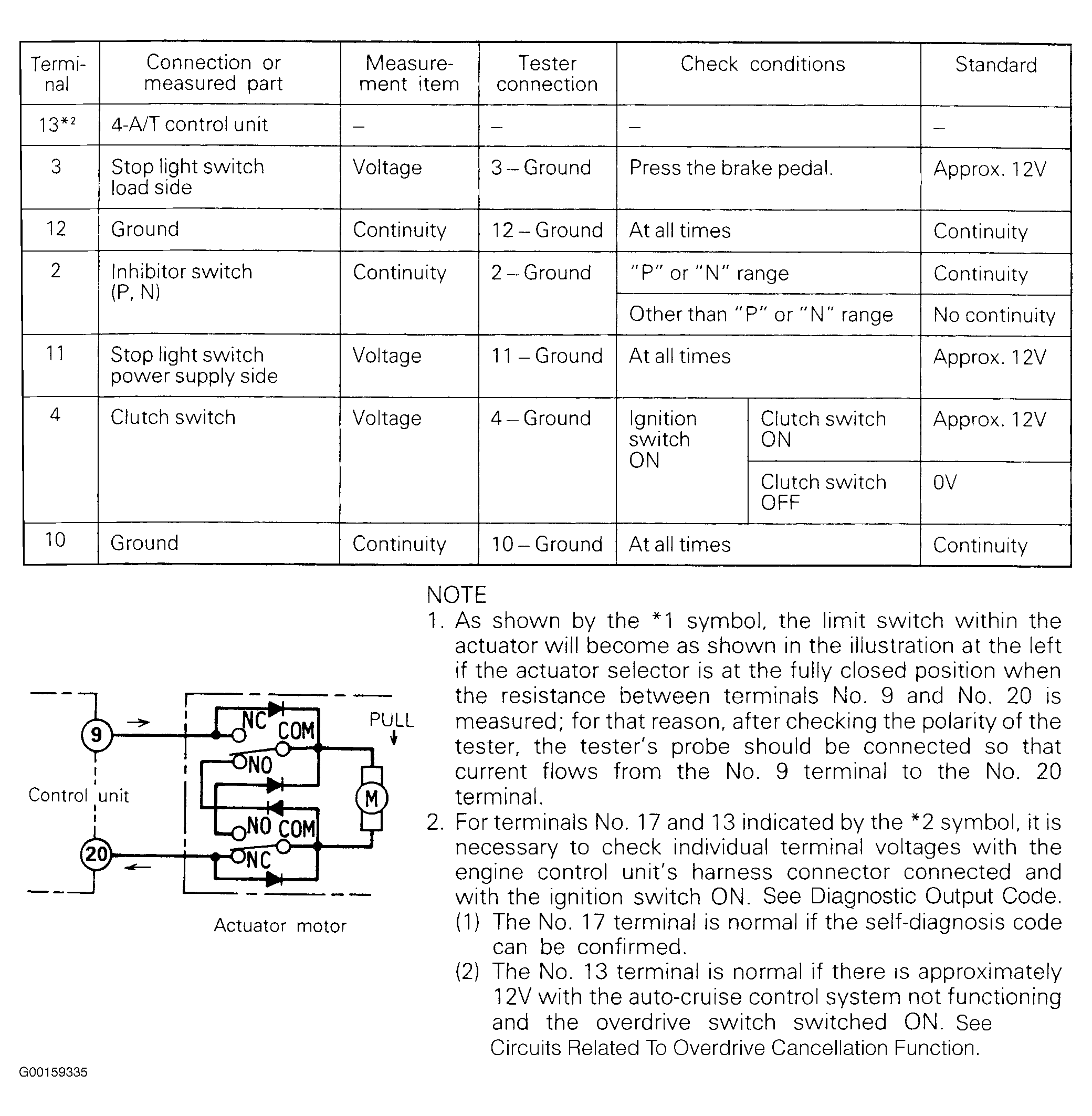

Fig 3: Identifying Identifying Auto-Cruise Control Circuit Values (2 Of 2)
