Stop Light Switch/Brake Switch

  1. Disconnect the connector.
  2. Check for continuity between the terminals of the switch. See Fig 1 .

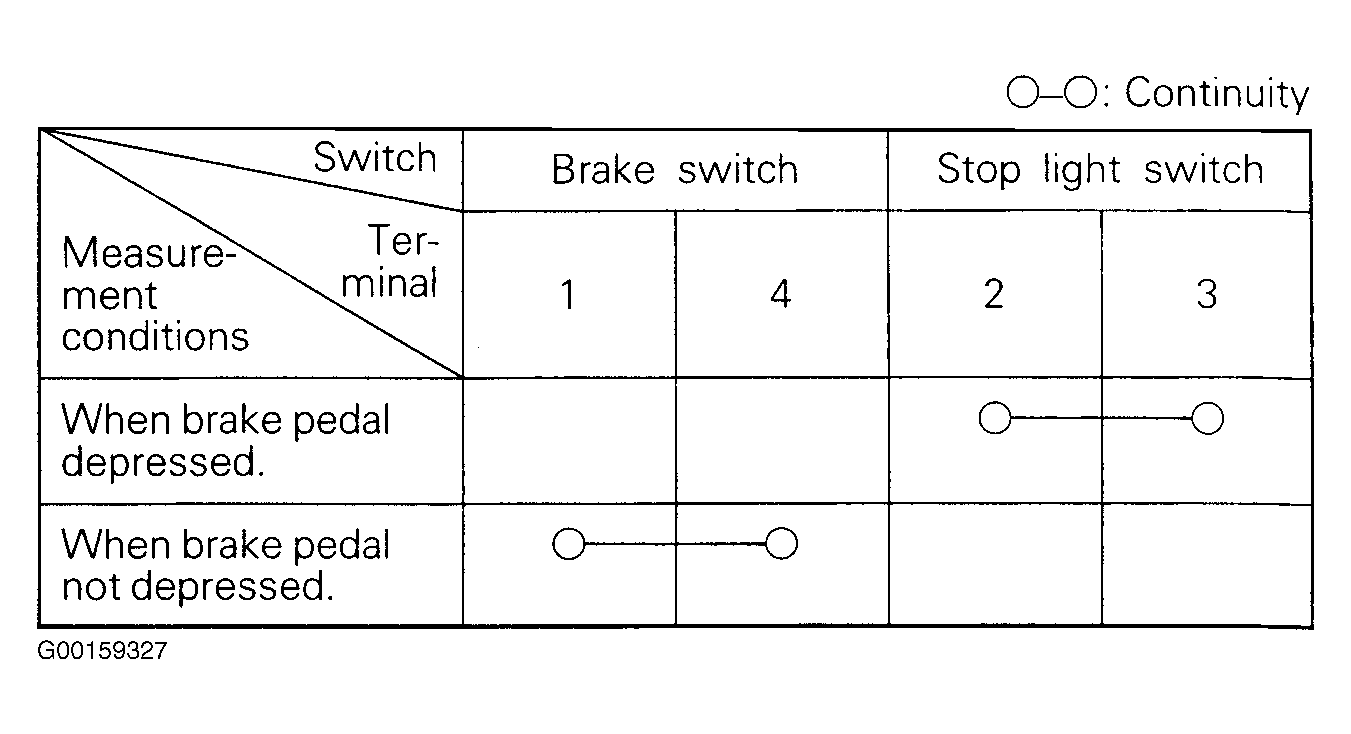

Fig 1: Checking Continuity On Stop Light & Brake Switch Terminals
G00159327Courtesy of CHRYSLER CORP.
