Component Test: Actuator: Notes

Disconnect the connector.
Measure the resistance value of the clutch coil. See Fig 1 . Standard resistance between terminal No. 1 and 2 should be approximately 20 ohms.

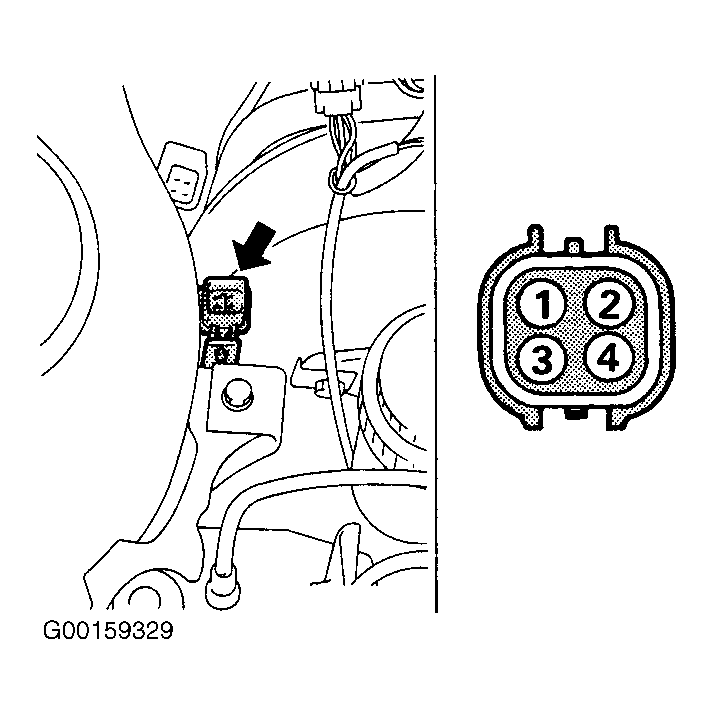

Fig 1: Identifying Actuator Connector

Courtesy of CHRYSLER CORP.
