Auto-Cruise Control Switch

Remove the knee protector (or lower panel assembly) and the column cover.
Disconnect the column switch connector and check the continuity between the terminals. See Fig 1 .

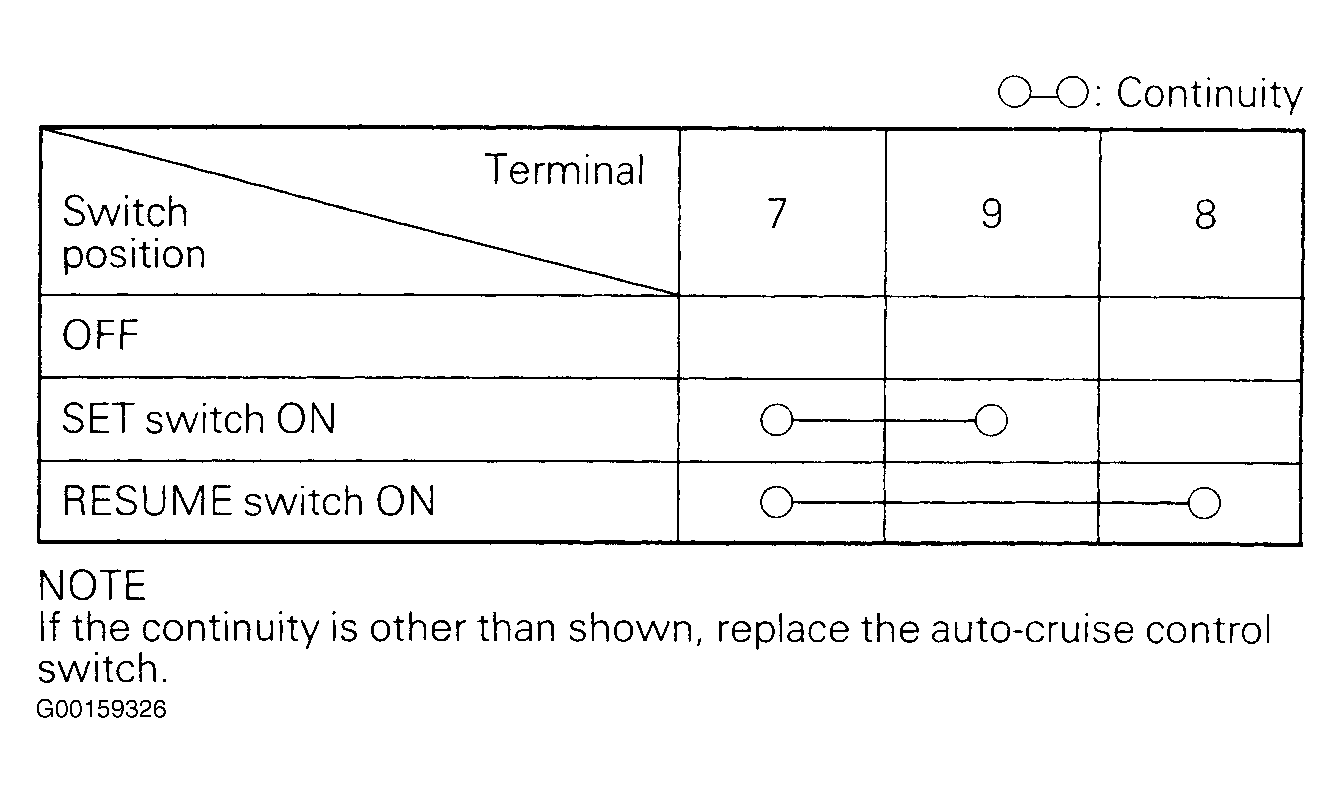

Fig 1: Checking Continuity Between Cruise Control Terminals

Courtesy of CHRYSLER CORP.
