Front Wiper Relay Continuity Check

On all models equipped with an external front wiper relay, remove the relay from the wiper motor bracket. Ensure continuity is present between terminals No. 2 and 5. See Fig 1 .

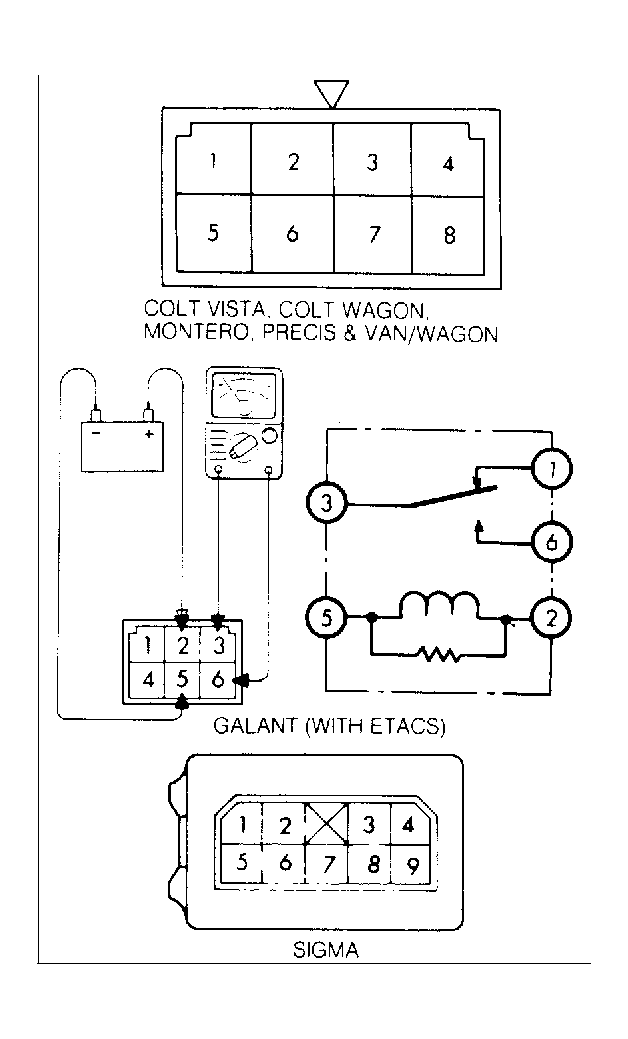

Fig 1: Identifying Wiper Relay Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
