Dr-6: Checking Intake Air Temp Sensor - Non-Turbo

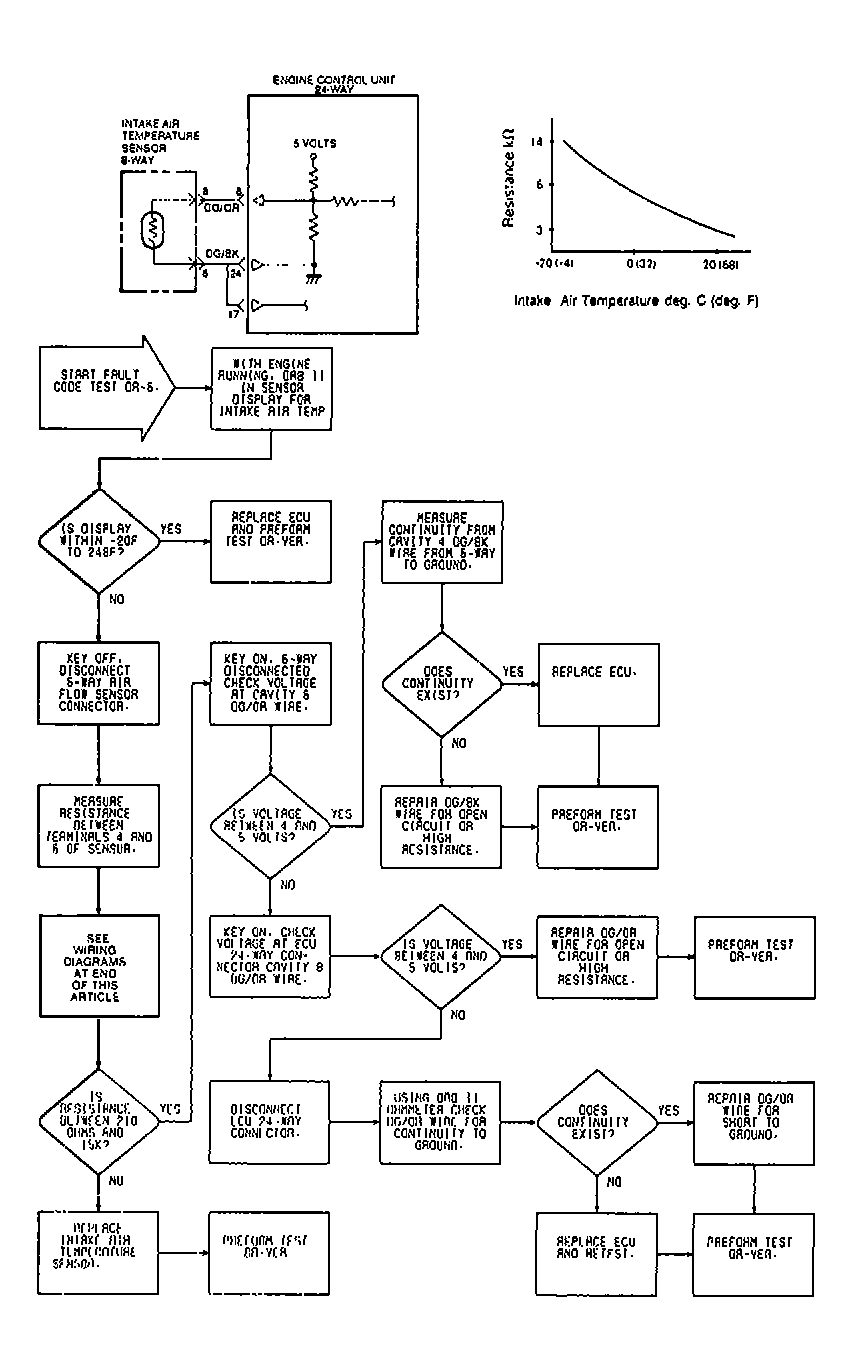

Fig 1: DR-6 Flow Chart & Circuit Diagram (2.0L Non-Turbo)
