Clearance and Design Specifications



General Specifications:

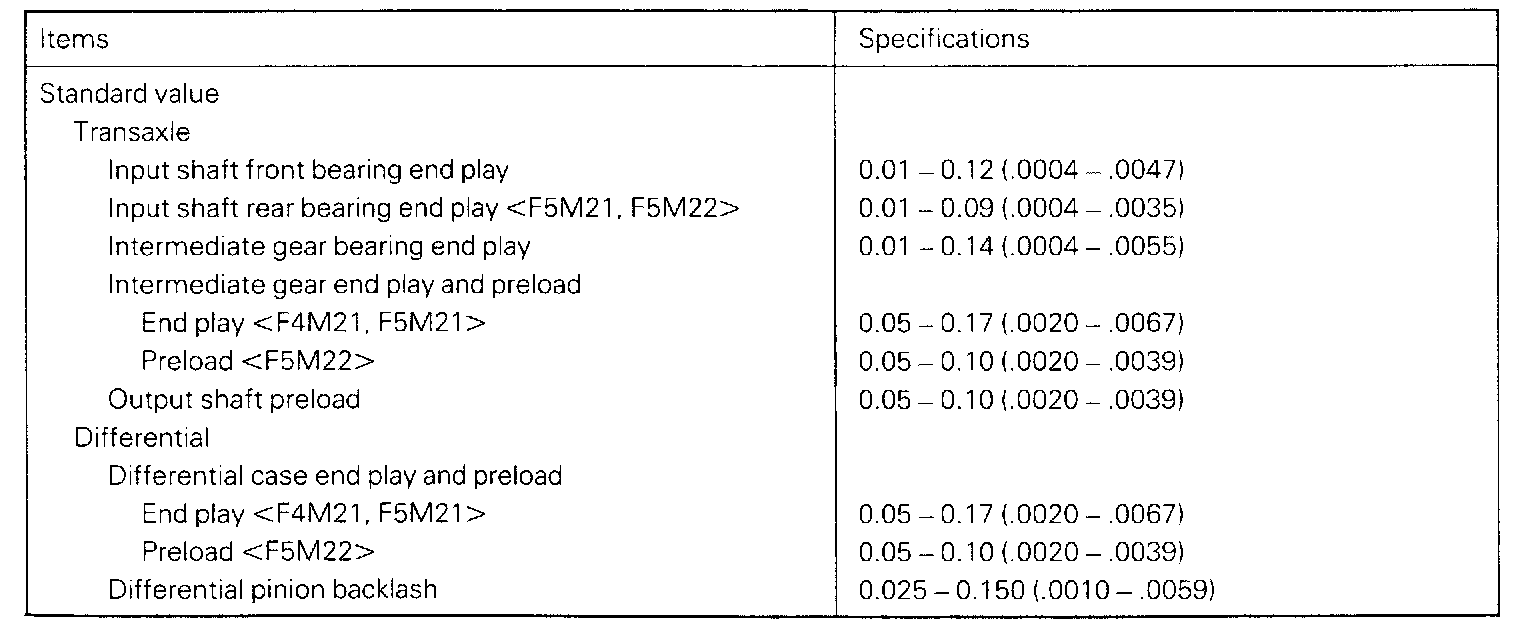

Service Specifications:

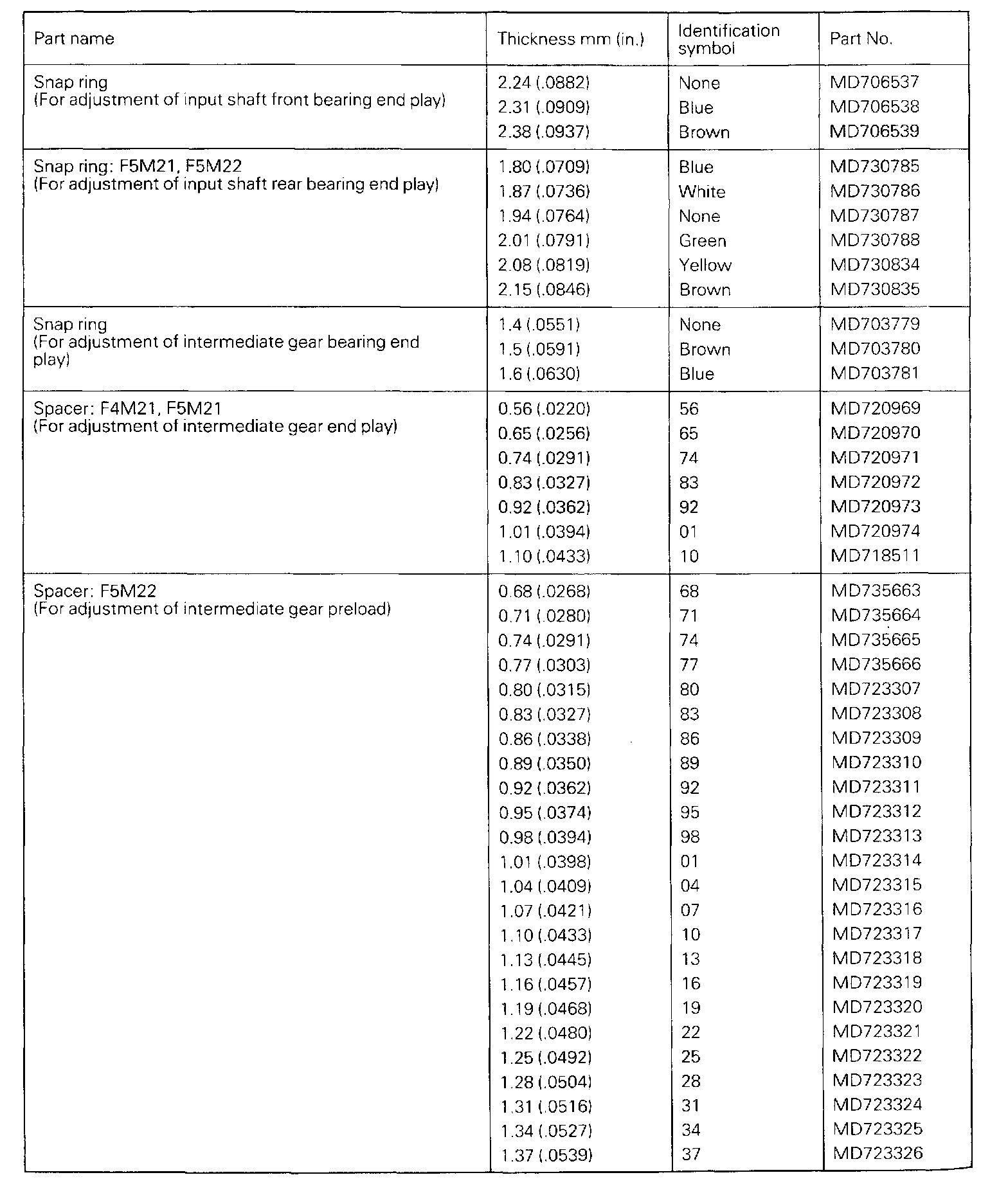

Snap Ring For (Adjustment) And Spacer:

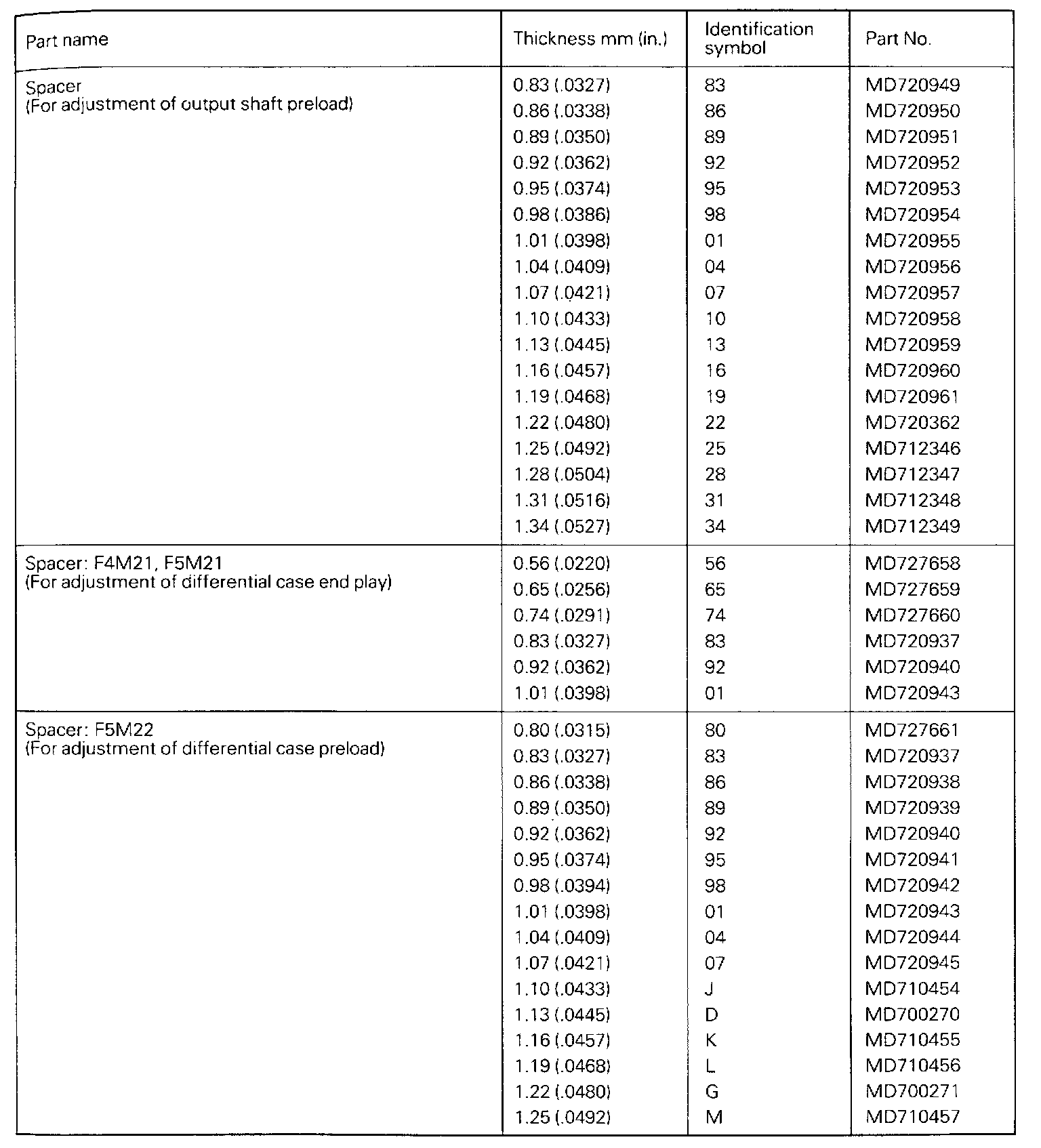

Continued:




Continued:





Lubricants:
