Code Location

To obtain the code number required for replacement of the transmitter, inspection of the transmitter or receiver will be necessary. See RECEIVER  .

  1. Separate the transmitter at the middle seam.
  2. Relieve tension on the tabs and remove the printed circuit board. See Fig 1 .

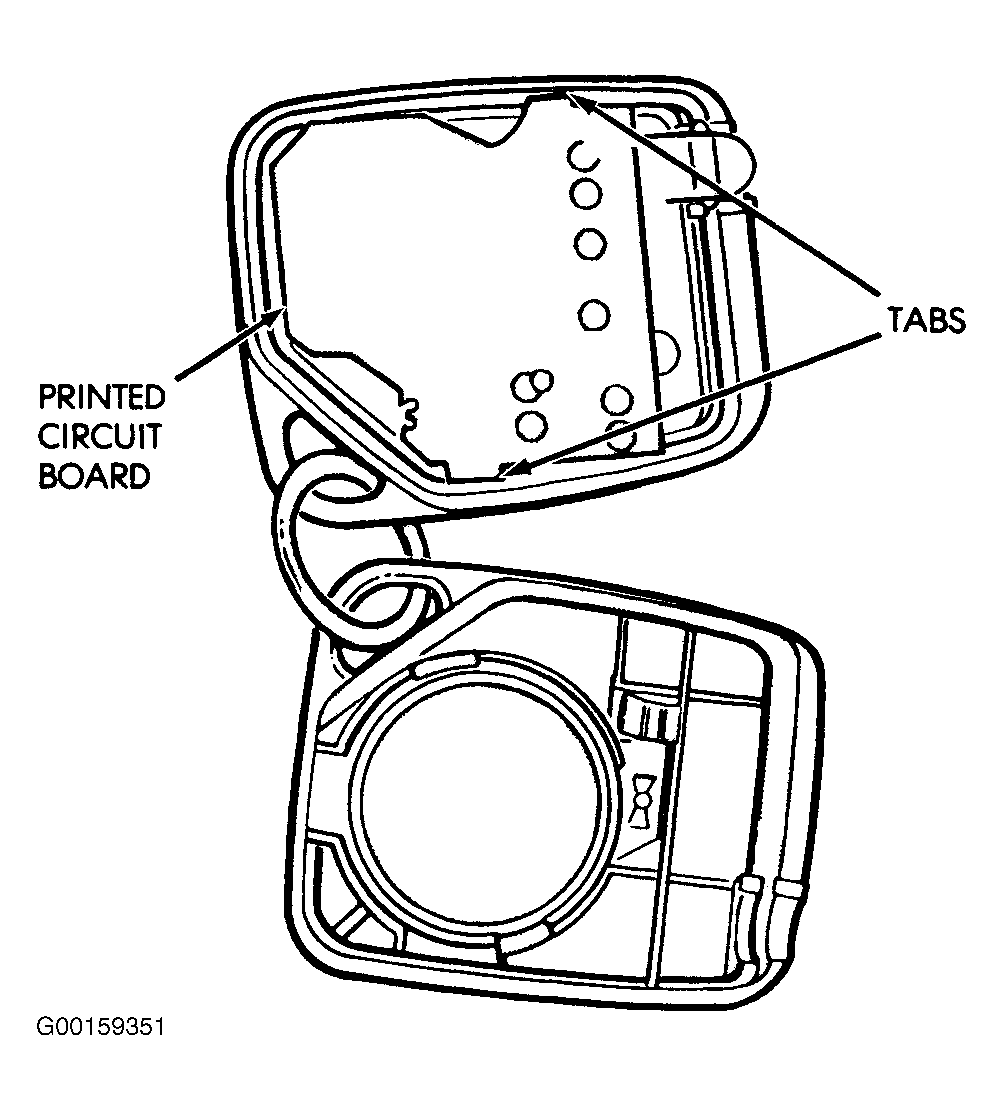

    Fig 1: Removing Printed Circuit Board
    G00159351Courtesy of CHRYSLER CORP.
  3. Inspect the circuit board for the code number. See Fig 2 .

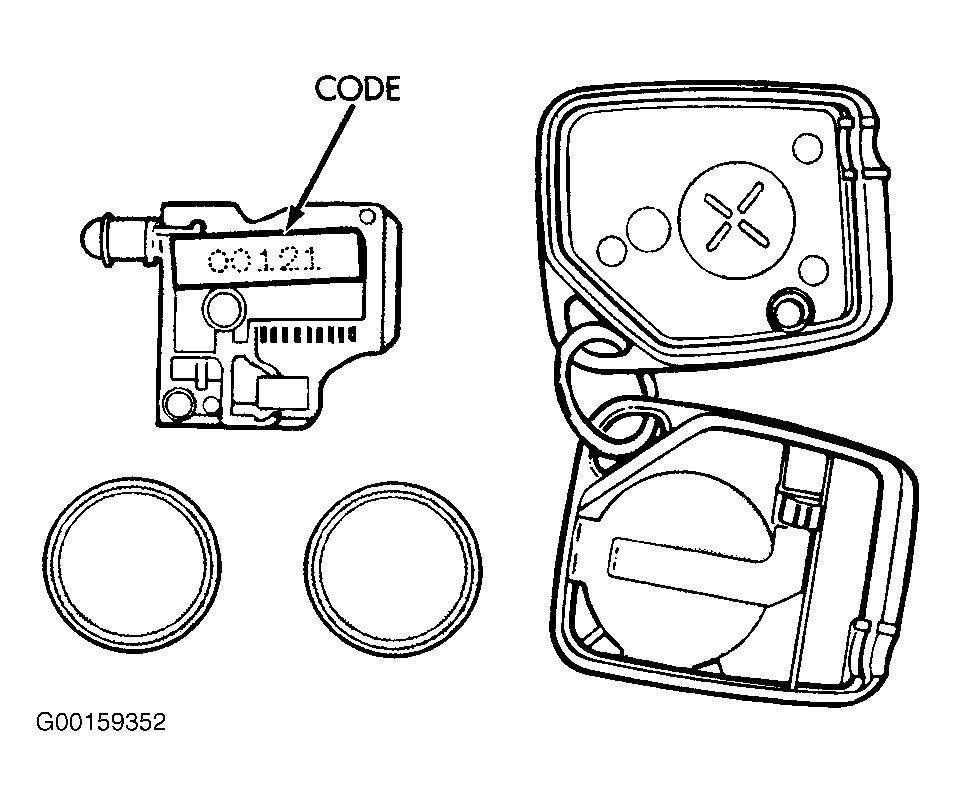

Fig 2: Locating Transmitter Code Number
G00159352Courtesy of CHRYSLER CORP.
