Junction Block

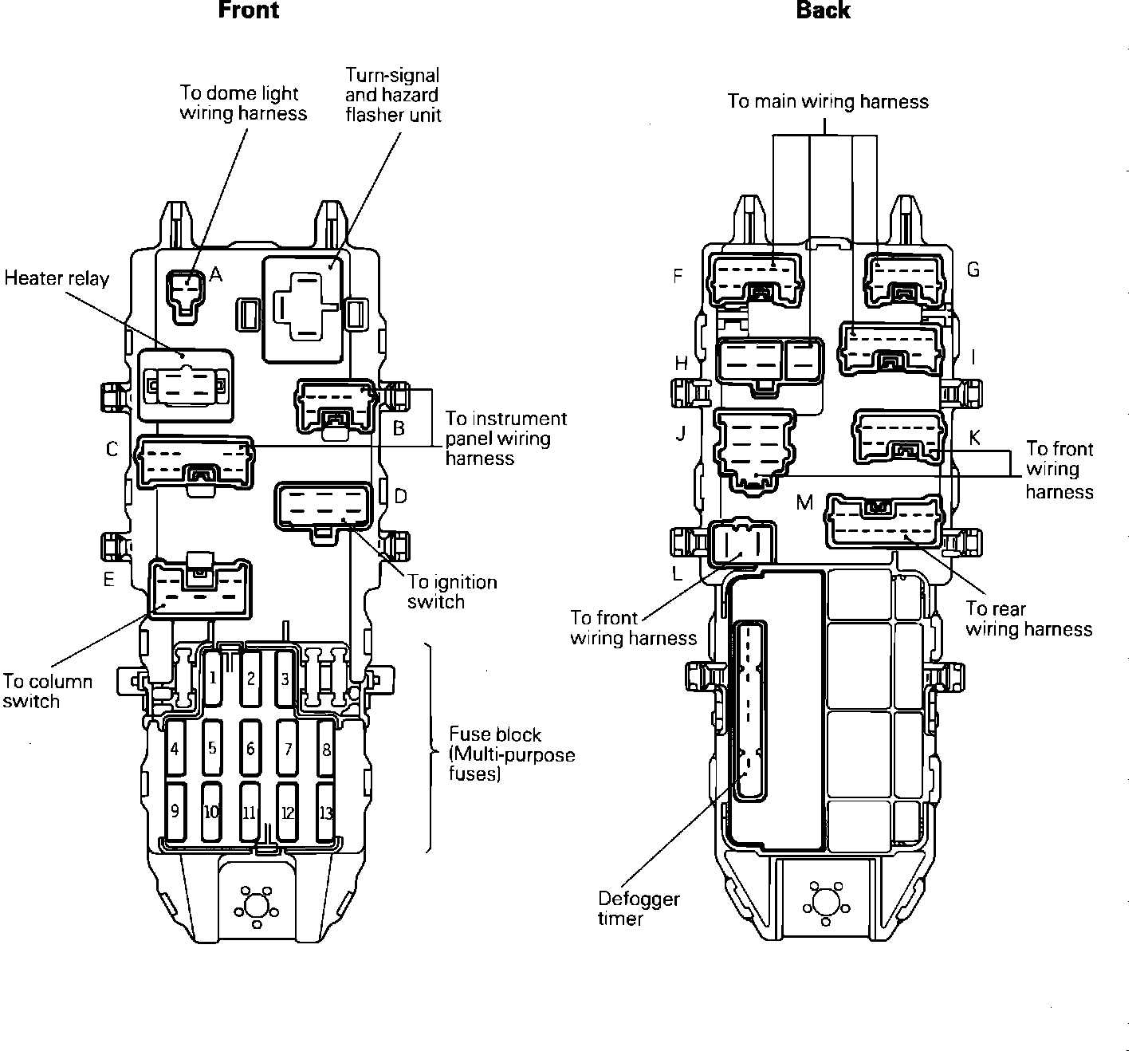

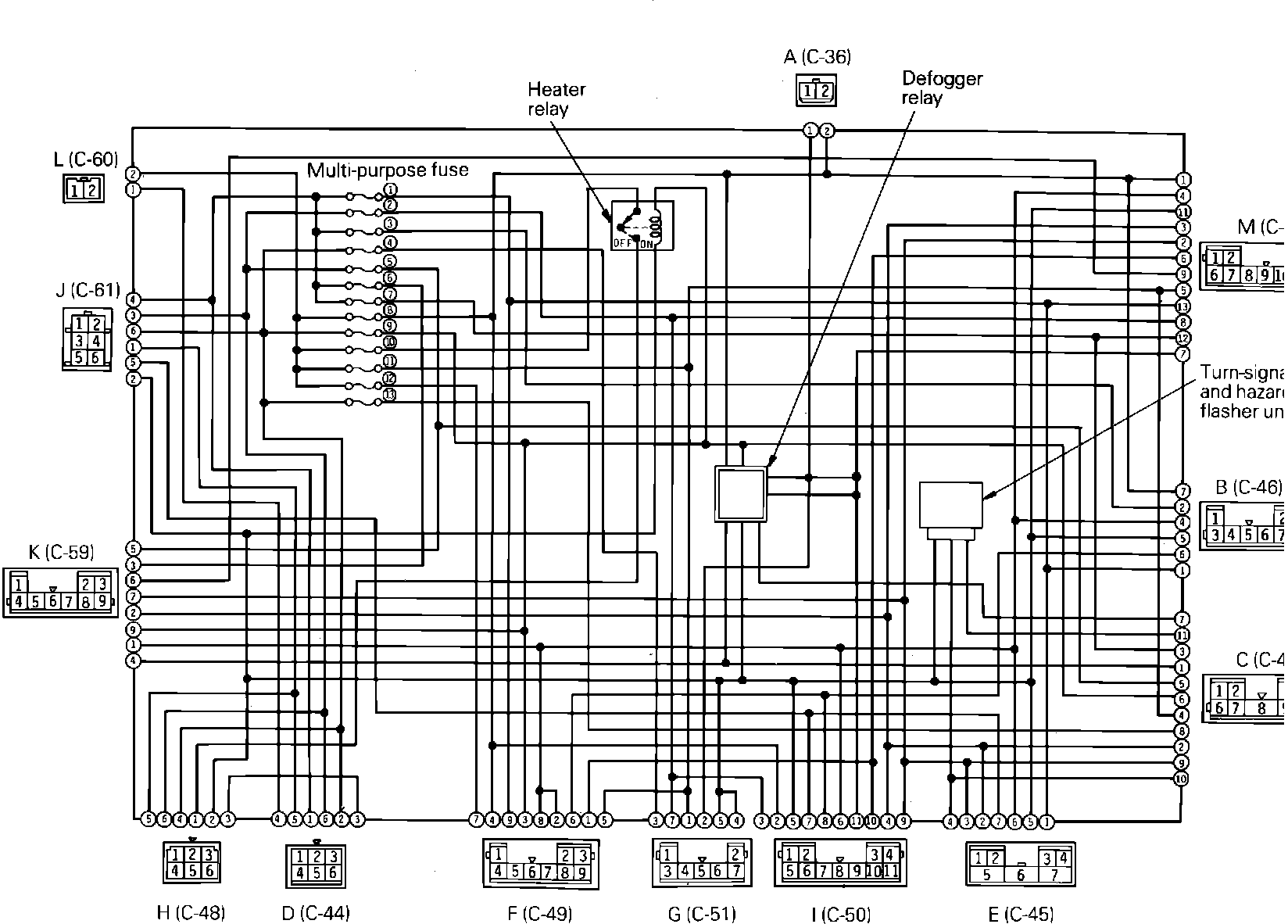

���"Fuse Panel Details. Junction Block Schematic:



Fuse Panel Details. Junction Block Schematic:

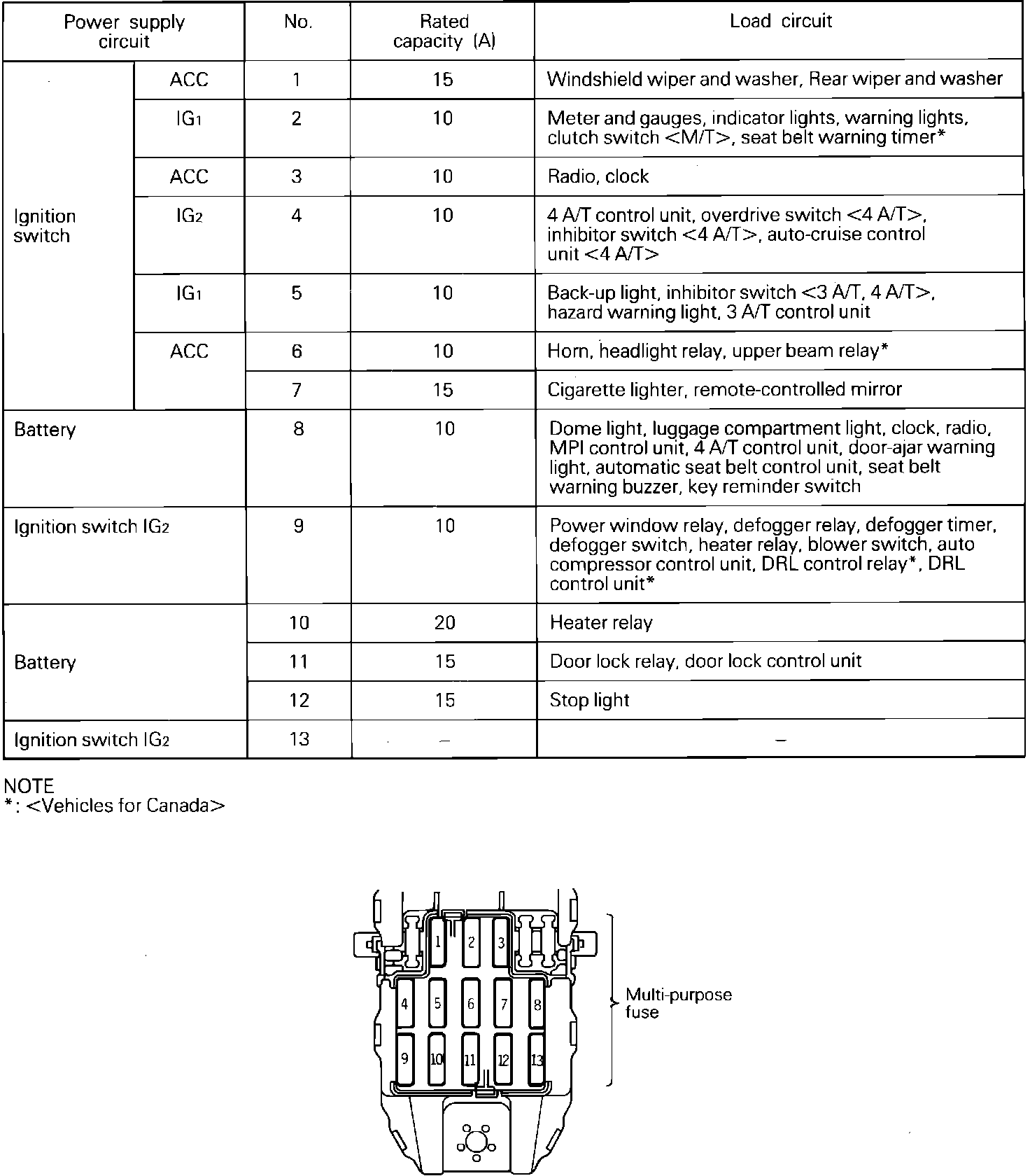

Fuse Panel:
