Ignition Control Module: Locations

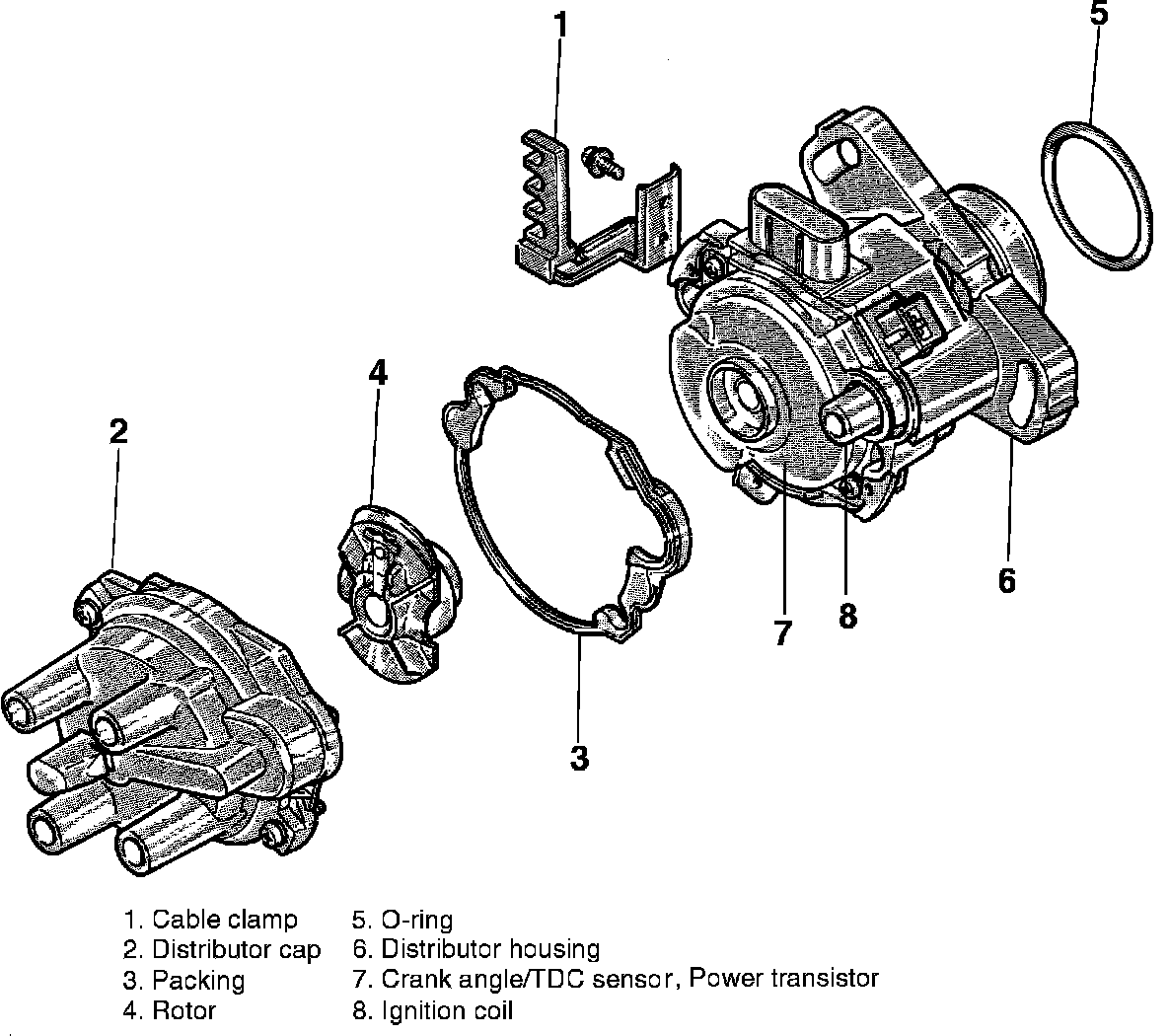

Distributor Assembly:









The Power Transistor is located in the distributor housing, on the end of the cylinder head.
