Test 19B: Anti-Lock Light Relay Fault

Fig 1: Test 19B - ANTI-LOCK Light Relay Fault, Schematic
G91D09182

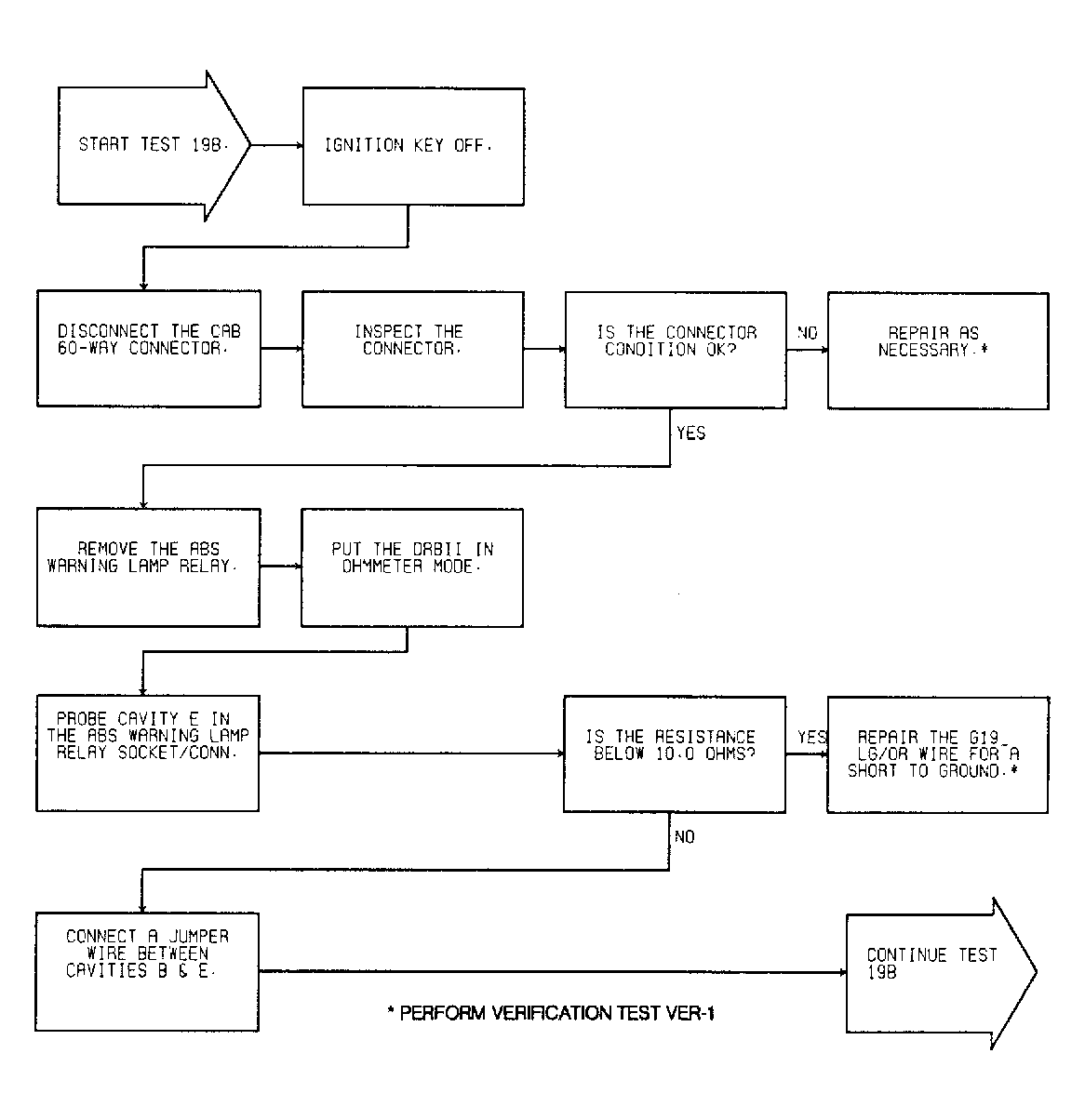

Fig 2: Test 19B - ANTI-LOCK Light Relay Fault, Flow Chart
G91J10859
Fig 3: Test 19B - ANTI-LOCK Light Relay Fault, Flow Chart
G91C10860
