Electronic Control Unit

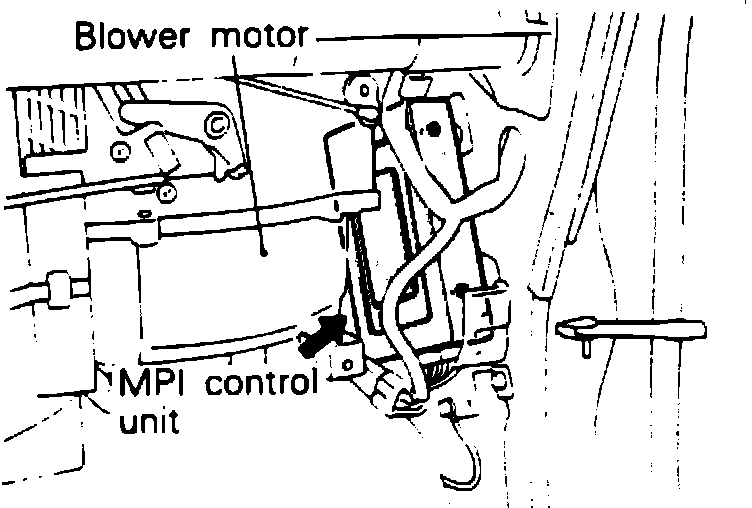

Multi-Point Injection (MPI) Control Unit Location:






The electronic (MPI) control unit is located RH of the vehicle, behind the dash bolster, next to the right kick panel.
