Eagle
>>
1992
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Locations
>>
With 4-Speed Transmission
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
With 4-Speed Transmission

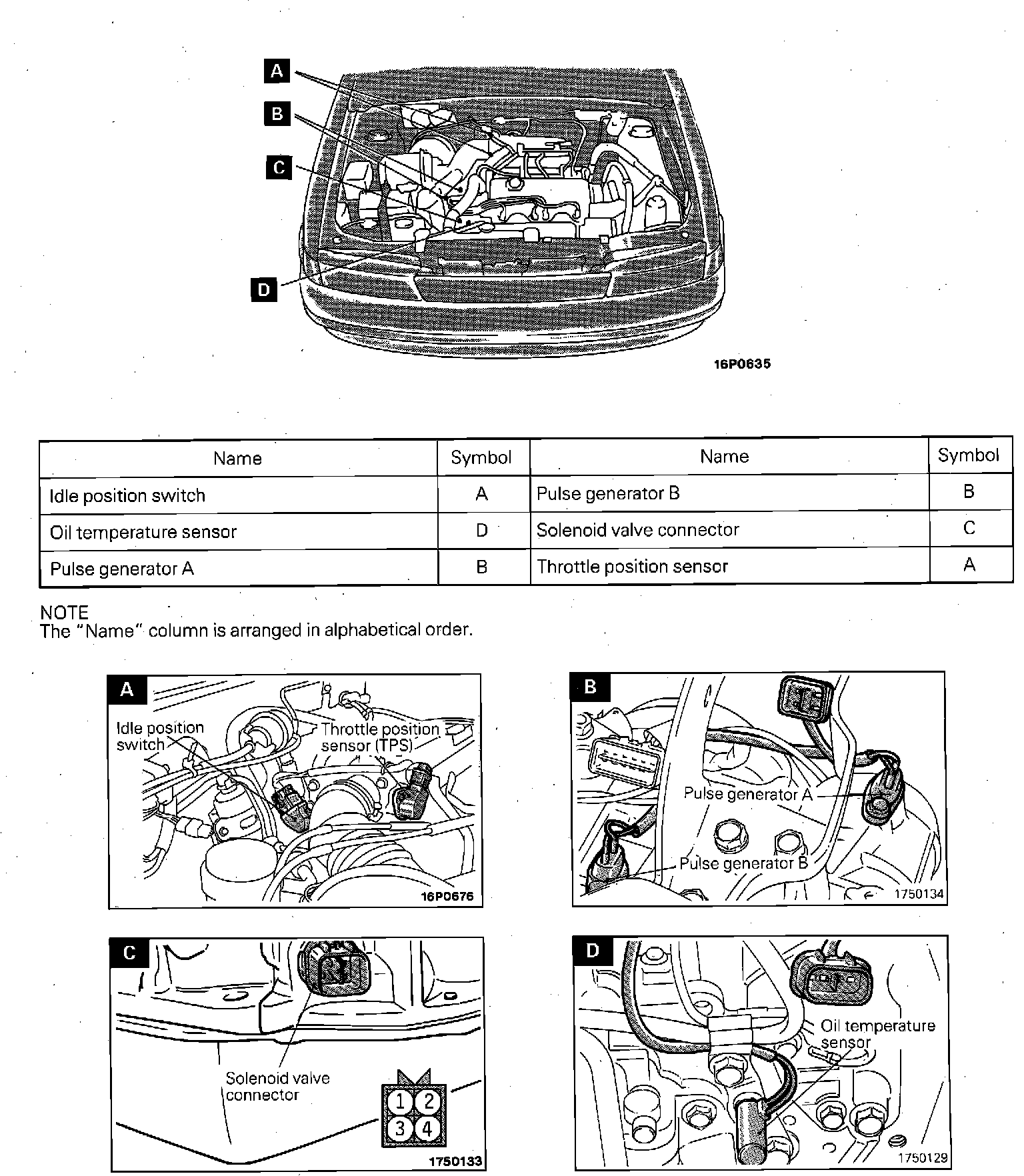

Component/Relay/Switch Locations (Automatic Transaxle, 4-Speed):

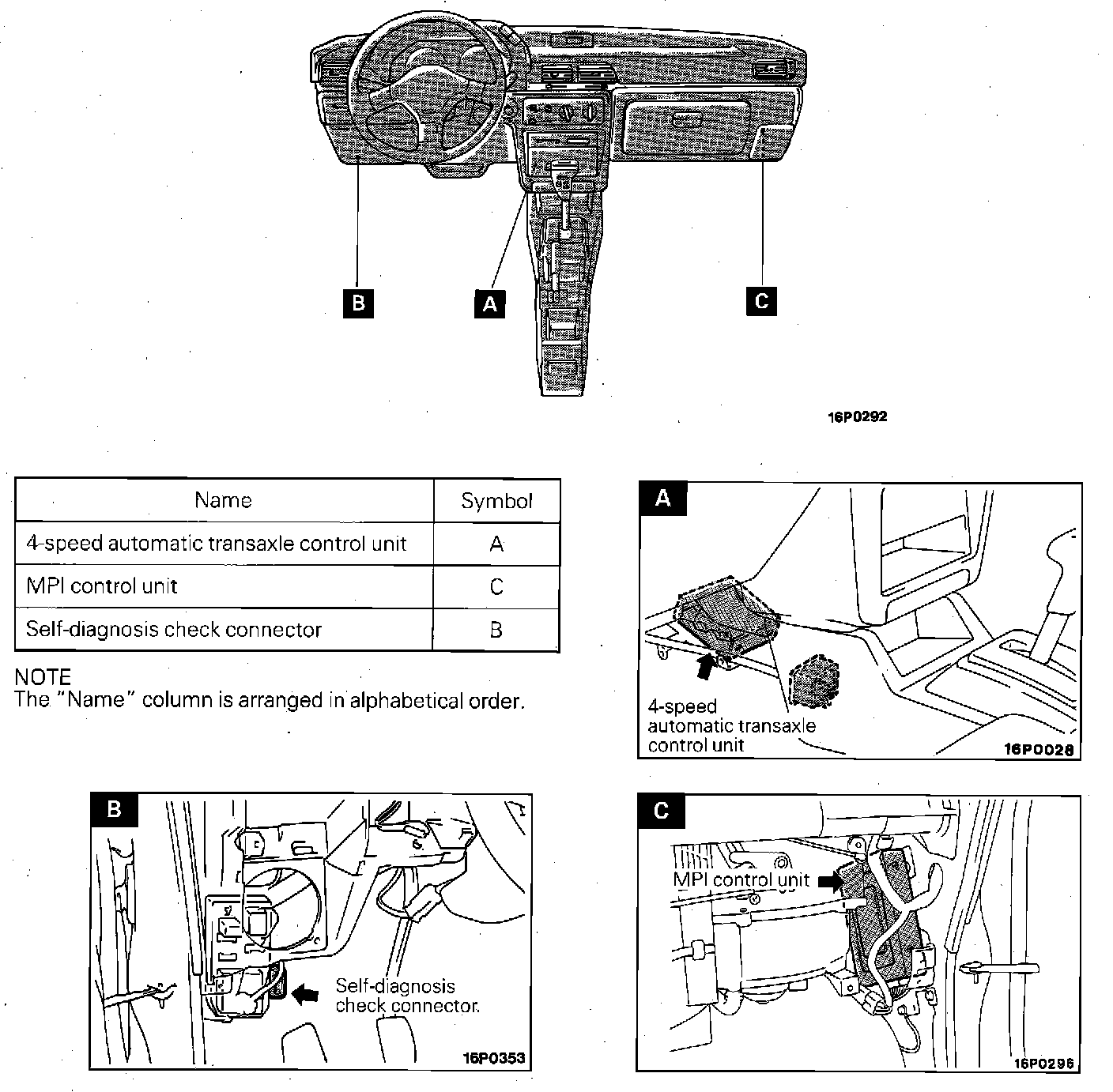

Component/Relay/Switch Locations (Automatic Transaxle, 4-Speed):
