Front Alignment Specifications

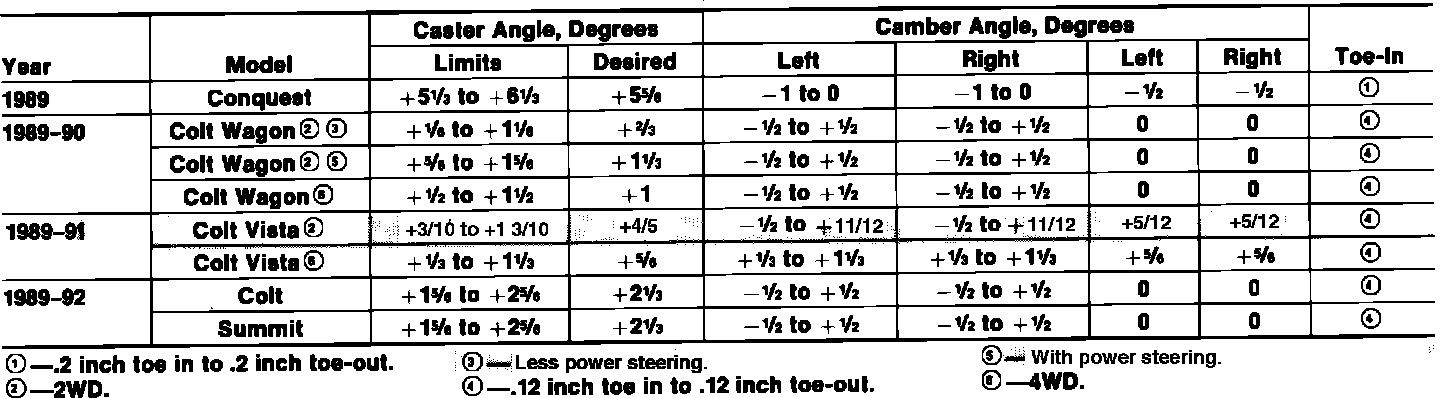

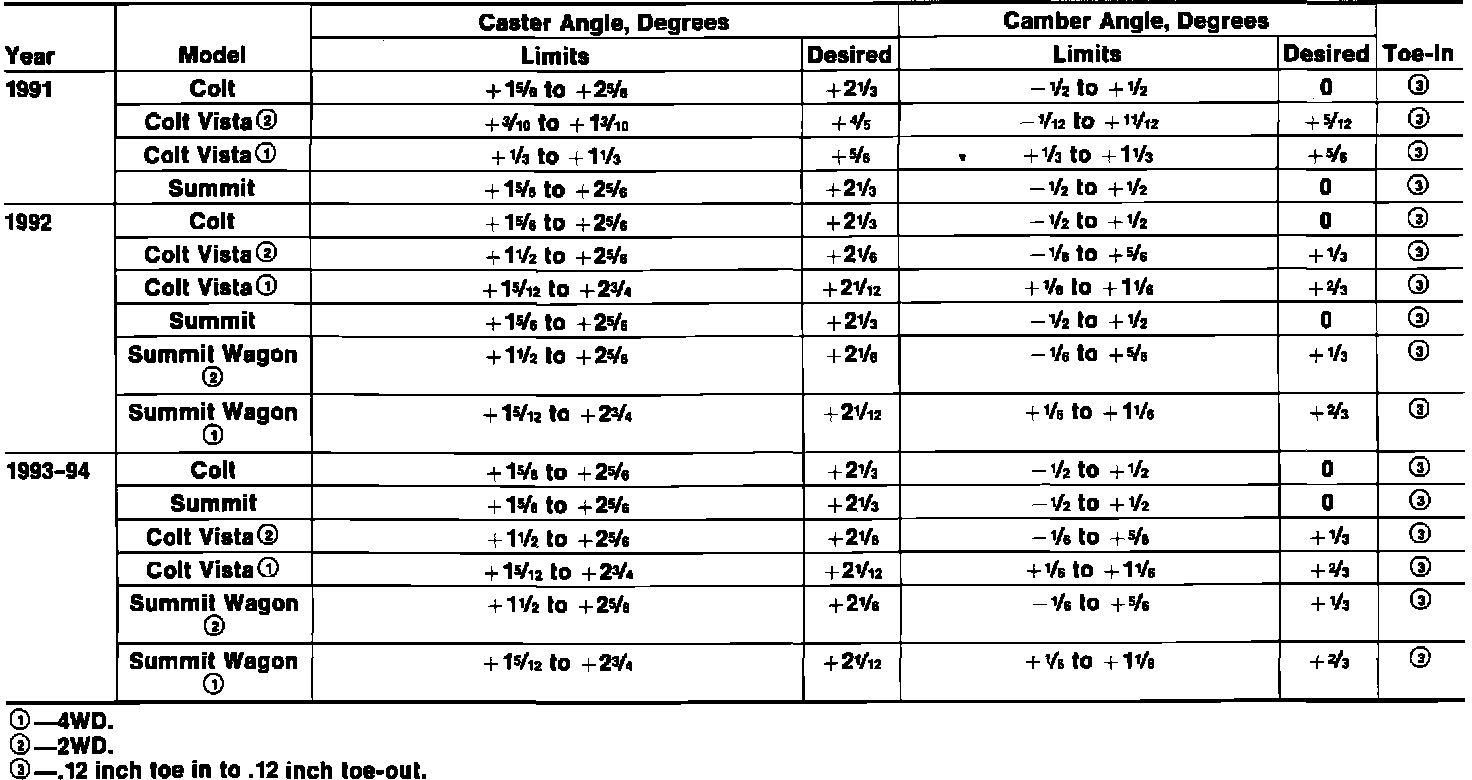

Front Wheel Alignment Specifications:



Front Wheel Alignment Specifications:
