NS-3A: Checking Fuel Pump

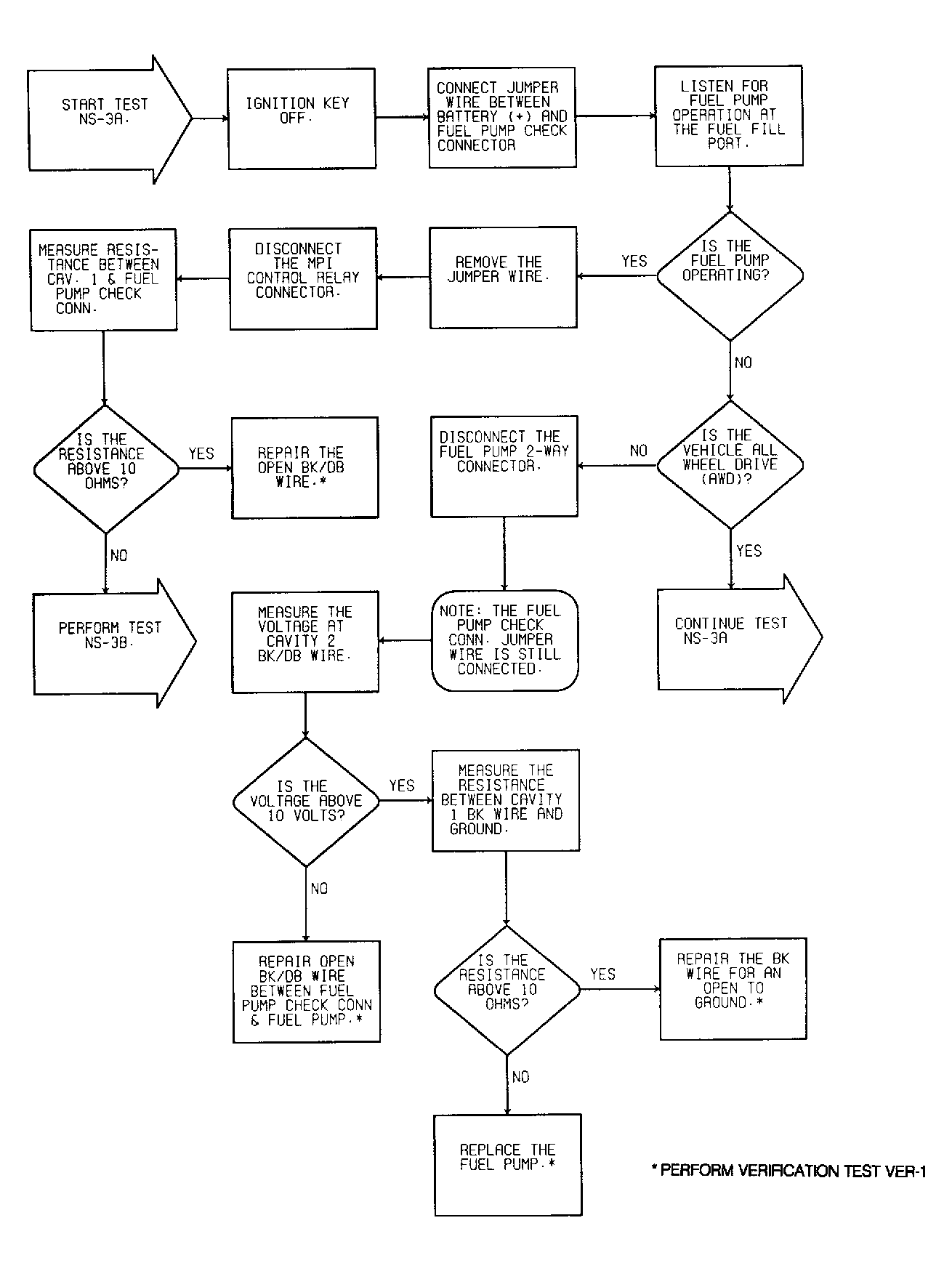

Fig 1: Test NS-3A Flow Chart (1 Of 2) Checking Fuel Pump
G92E25969

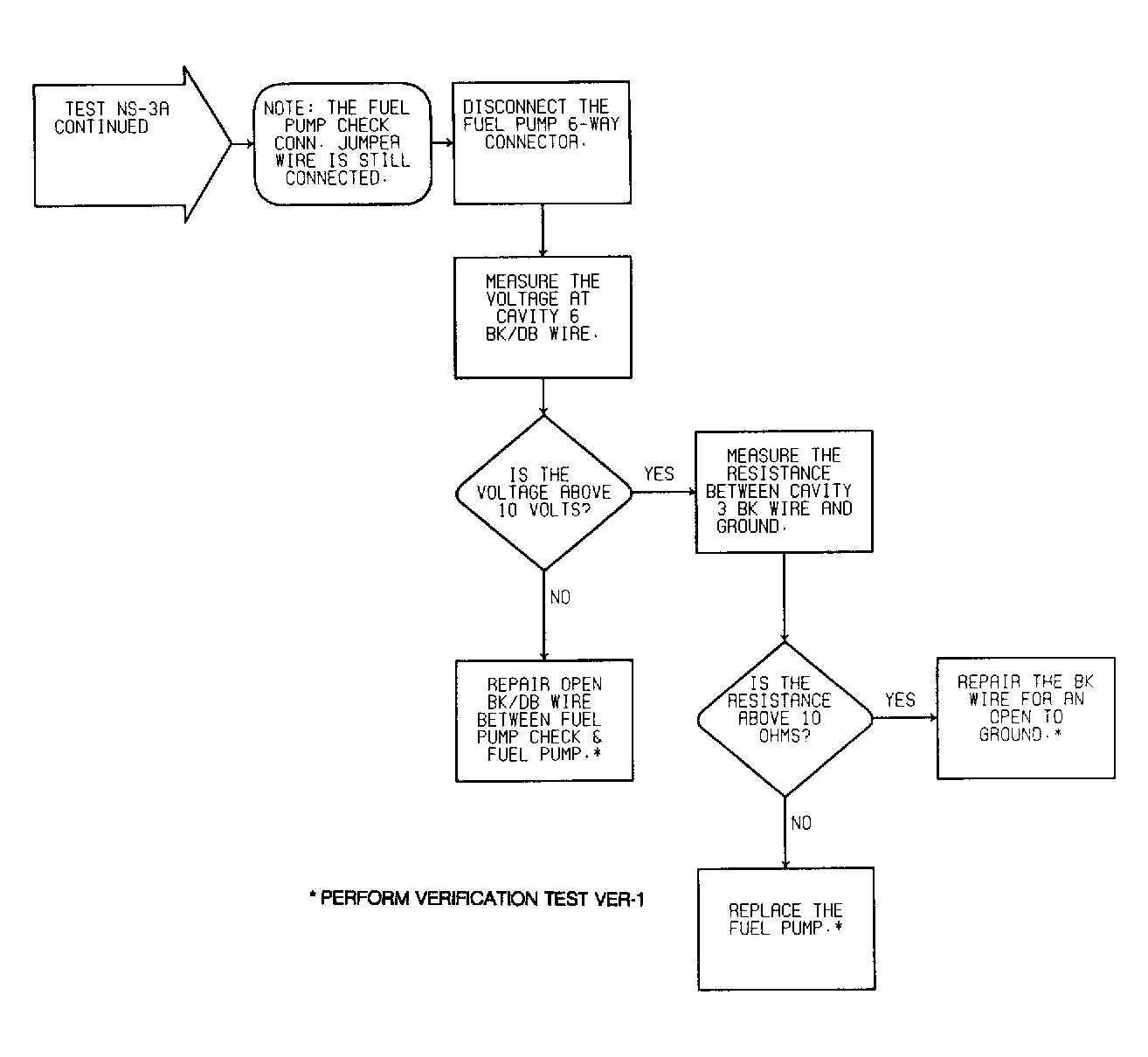

Fig 2: Test NS-3A Flow Chart (2 Of 2) Checking Fuel Pump
G92H25970
