Connector Identification

Fig 1: Distributor Connector Terminal ID
G92C26452Courtesy of CHRYSLER MOTORS.
Fig 2: ECU 10-Way Connector Terminal ID (2.4L)
G90B15363Courtesy of CHRYSLER MOTORS.
Fig 3: ECU 18-Way Connector Terminal ID (2.4L)
G90C15364Courtesy of CHRYSLER MOTORS.
Fig 4: ECU 24-Way Connector Terminal ID (2.4L)
G90D15365Courtesy of CHRYSLER MOTORS.

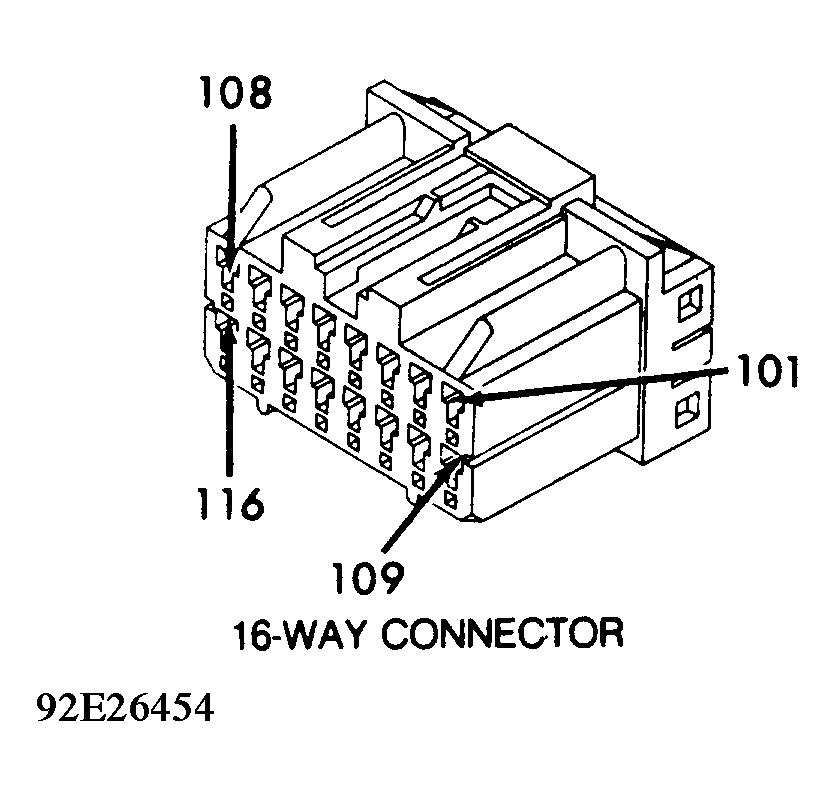

Fig 5: ECU 16-Way Connector Terminal ID (1.8L)
G92E26454Courtesy of CHRYSLER MOTORS.

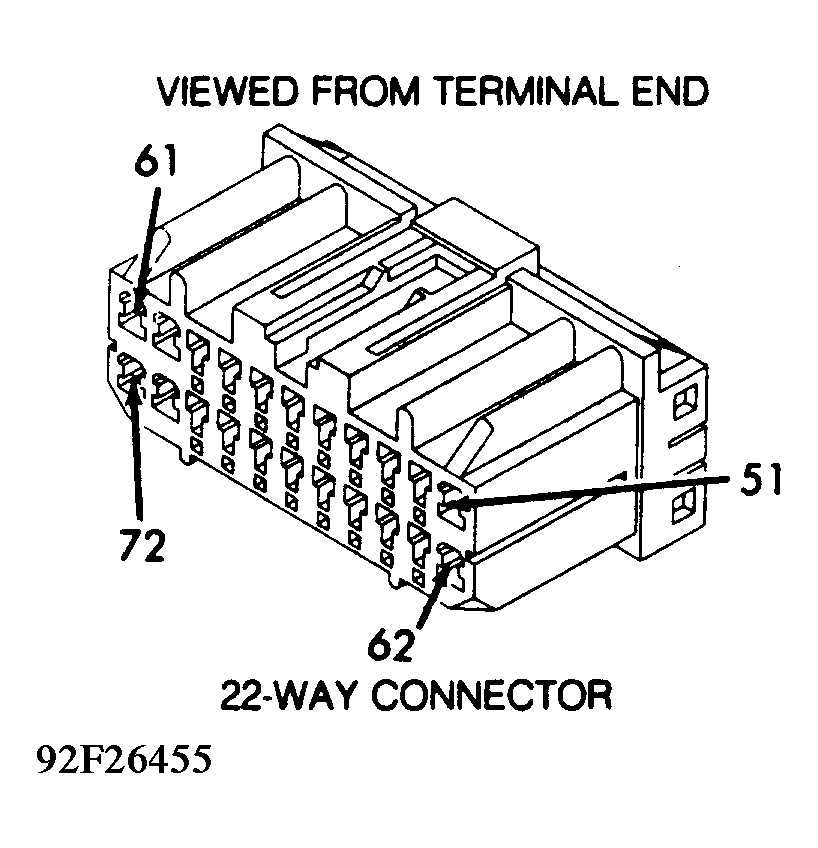

Fig 6: ECU 22-Way Connector Terminal ID (1.8L)
G92F26455Courtesy of CHRYSLER MOTORS.

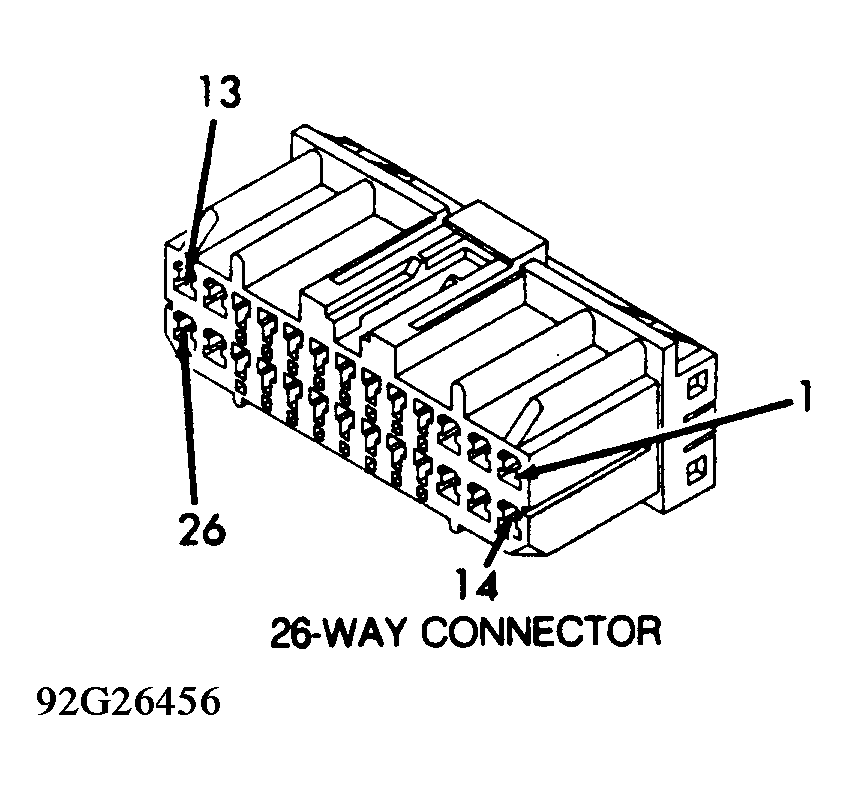

Fig 7: ECU 26-Way Connector Terminal ID (1.8L)
G92G26456Courtesy of CHRYSLER MOTORS.
Fig 8: Fuel Pump Connector Terminal ID
G92H26457Courtesy of CHRYSLER MOTORS.
Fig 9: MPI Control Relay Connector Terminal ID
G92J26459Courtesy of CHRYSLER MOTORS.
