Idle Position Switch

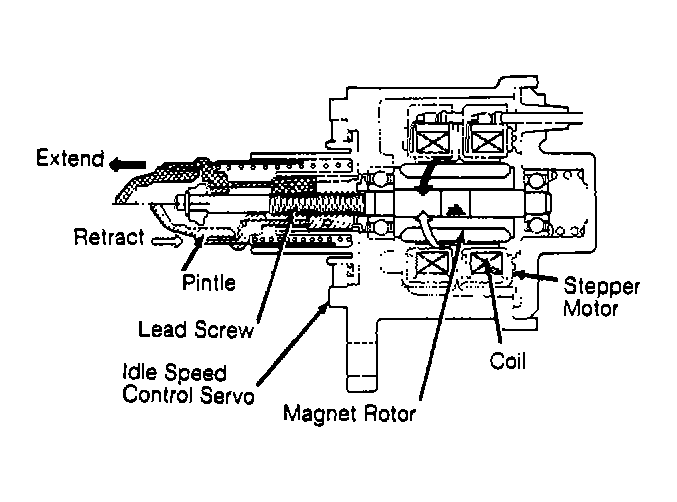

On 2.0L engines, idle position switch is located on throttle body. On 1.8L engines, idle position switch is part of idle speed control servo, located on throttle body. See Figure . Idle position switch is a contact-type switch, which detects operation of accelerator pedal and sends signal to ECU. Idle position switch also serves as a throttle stop screw.
