Section 8 (Disc): Overhaul

WARNING: This page is about a different car, the 1991 Plymouth Laser and 1991 Eagle Talon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Overhaul procedures are not available. For overhaul reference, refer to the following figures. See Fig 1 -Fig 4 .

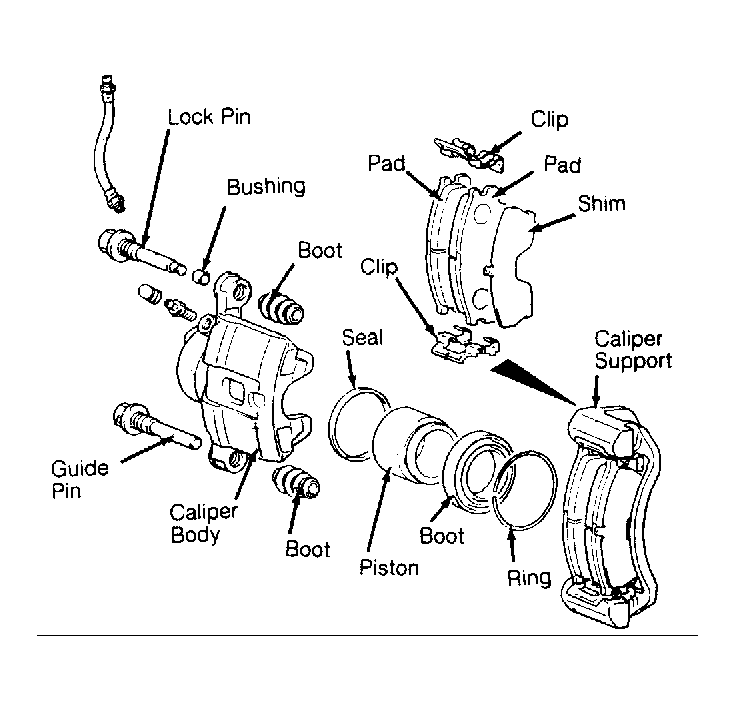

Fig 1: Exploded View of Front Brake Caliper

Courtesy of CHRYSLER MOTORS

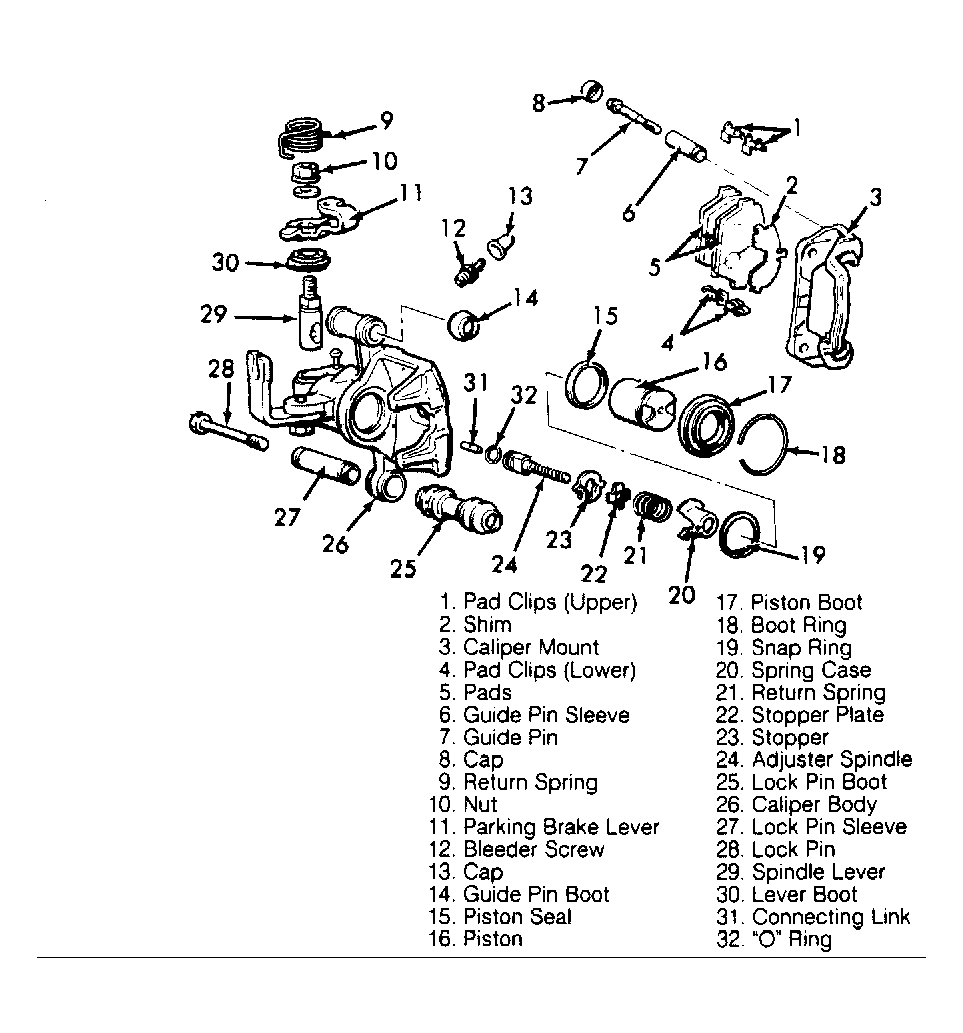

Fig 2: Exploded View of Rear Brake Caliper

Courtesy of CHRYSLER MOTORS

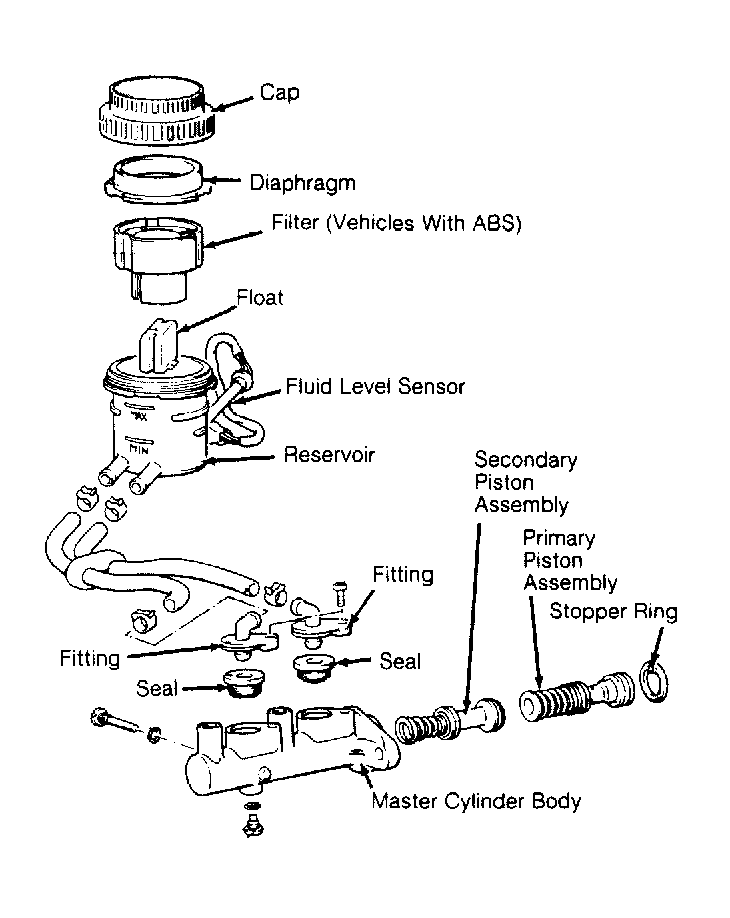

Fig 3: Exploded View of Master Cylinder

Courtesy of CHRYSLER MOTORS

Fig 4: Exploded View Rear Axle Hub & Bearing Assembly (AWD)

Courtesy of CHRYSLER MOTORS
