Transmission Control Systems: Locations

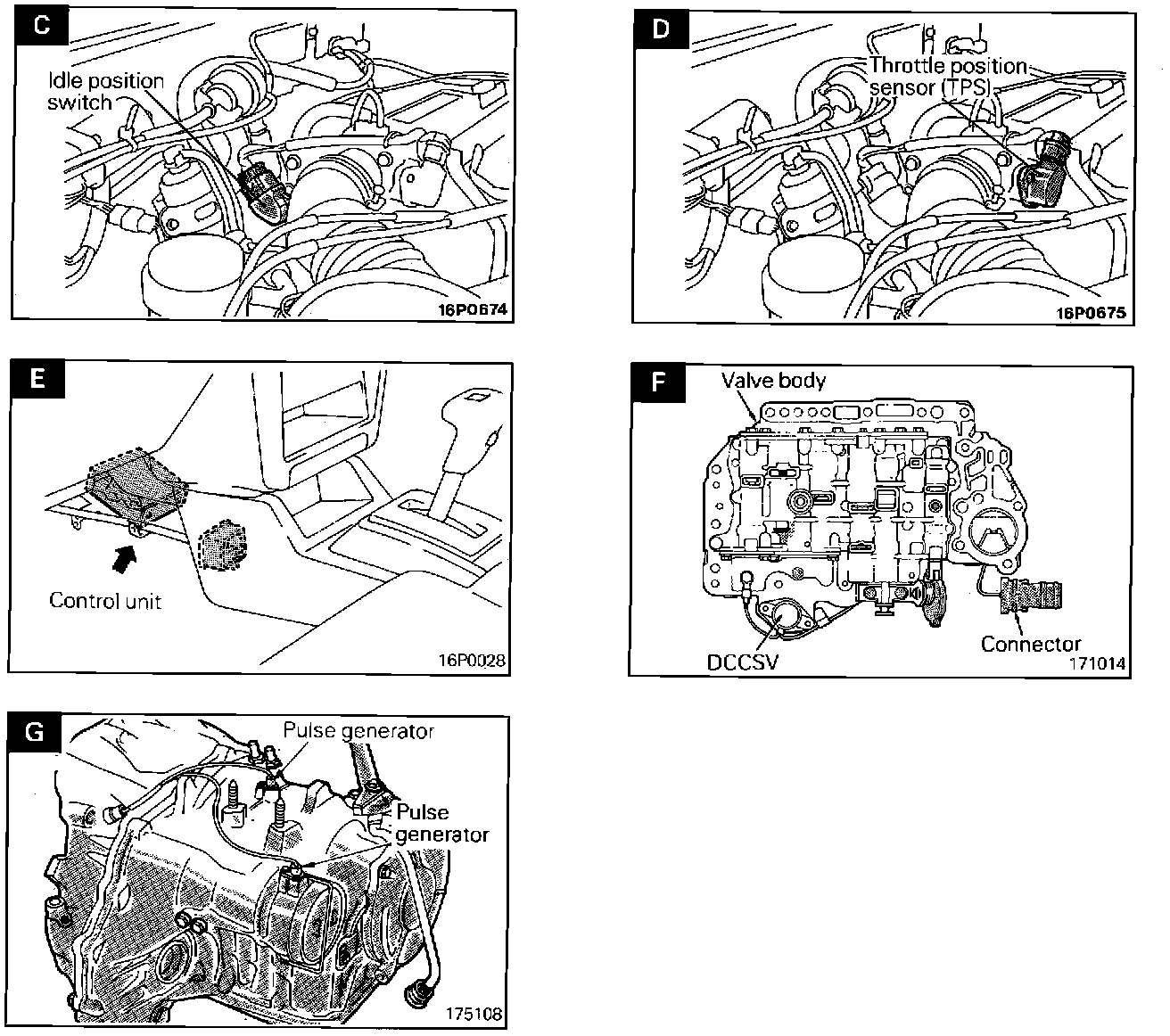

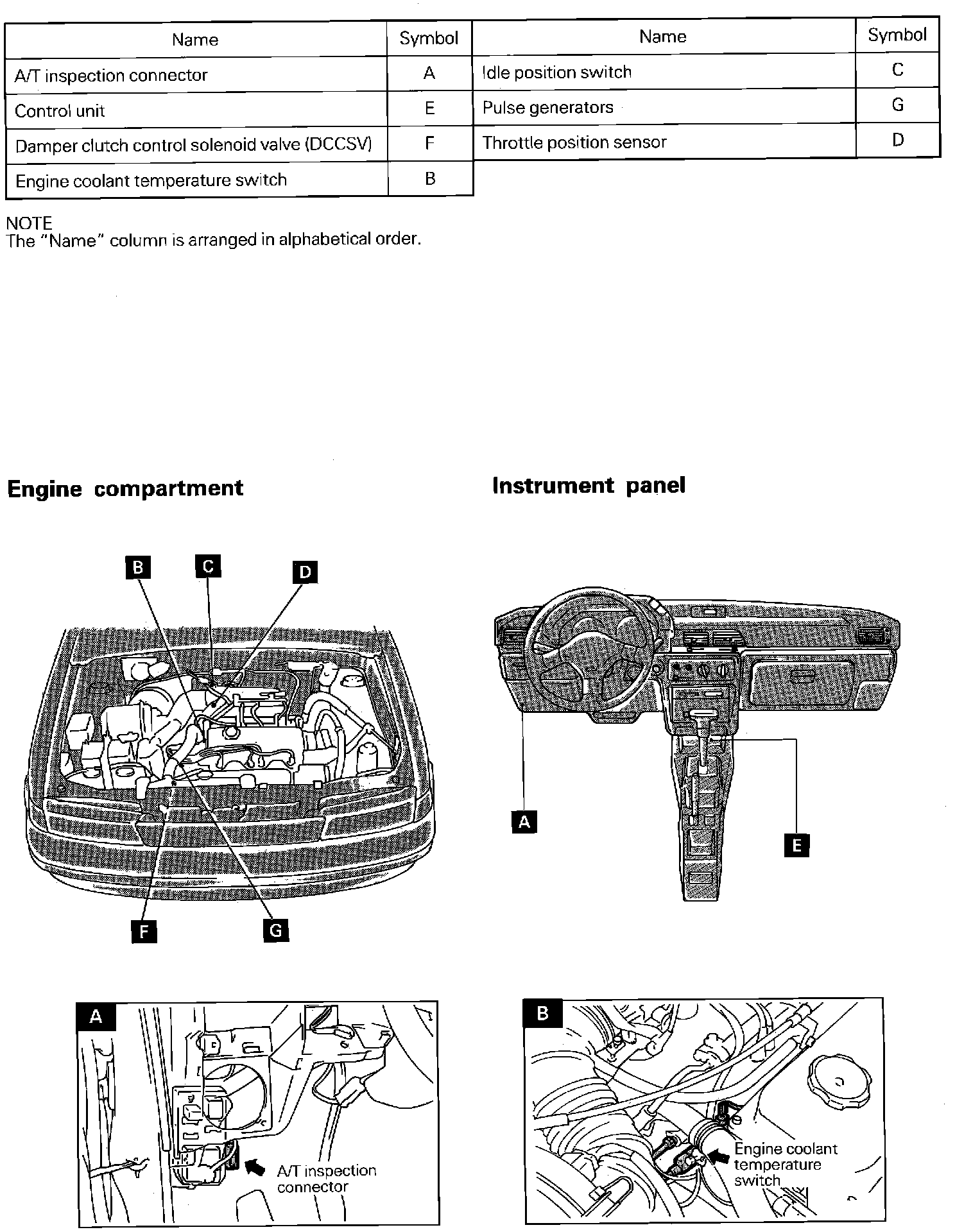

Component/Relay/Switch Locations (Automatic Transaxle, 3-Speed):



Component/Relay/Switch Locations (Automatic Transaxle, 3-Speed):
