One Speaker Non-Operative

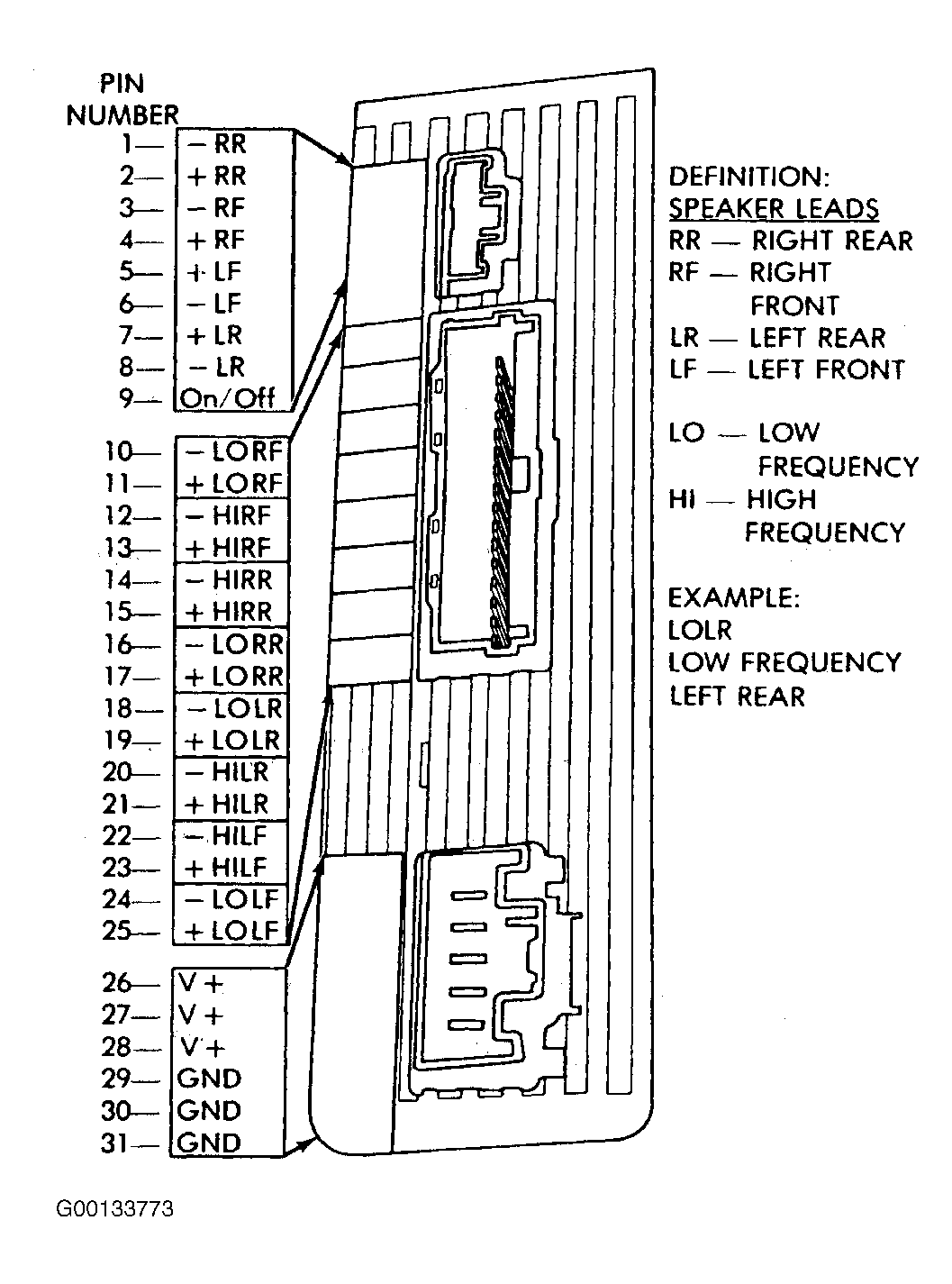

Remove amplifier harness connector and check resistance between the non-operative speaker circuits. For output signal circuit identification, see Figure . Resistance should be 2-5 ohms.
If resistance is less than two ohms, check resistance between speaker connector terminals. Resistance should be 2-5 ohms.
If okay, repair wires. If not, replace speaker. See SPEAKERS under REMOVAL & INSTALLATION.
