Firing Order

Firing Order and Cylinder Location:






Firing Order 1 2 3 4 5 6

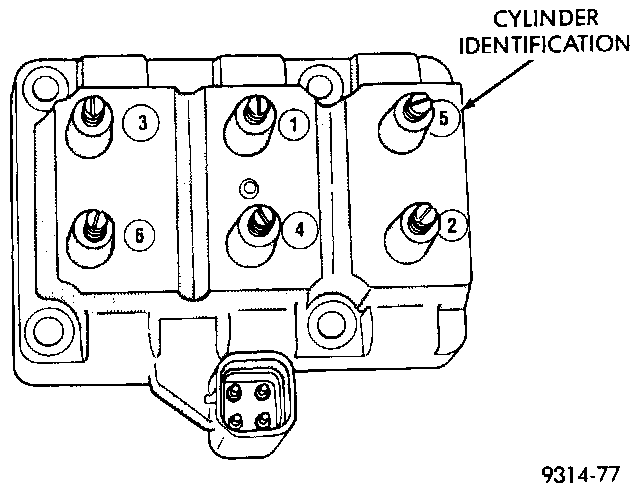

Fig. 32 Cylinder Identification:

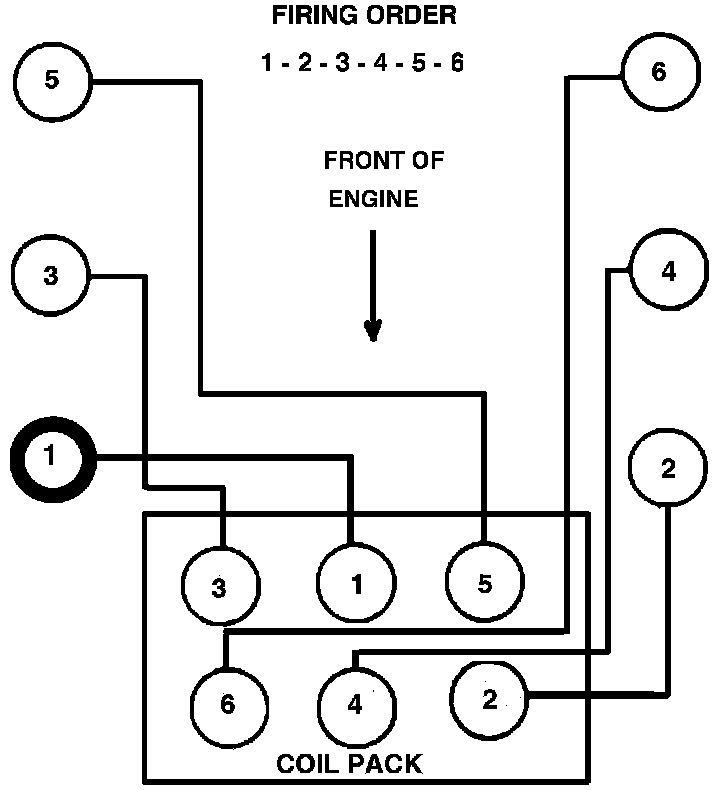

Coil Pack Wiring Identification
