Abnormal Waveforms Examples

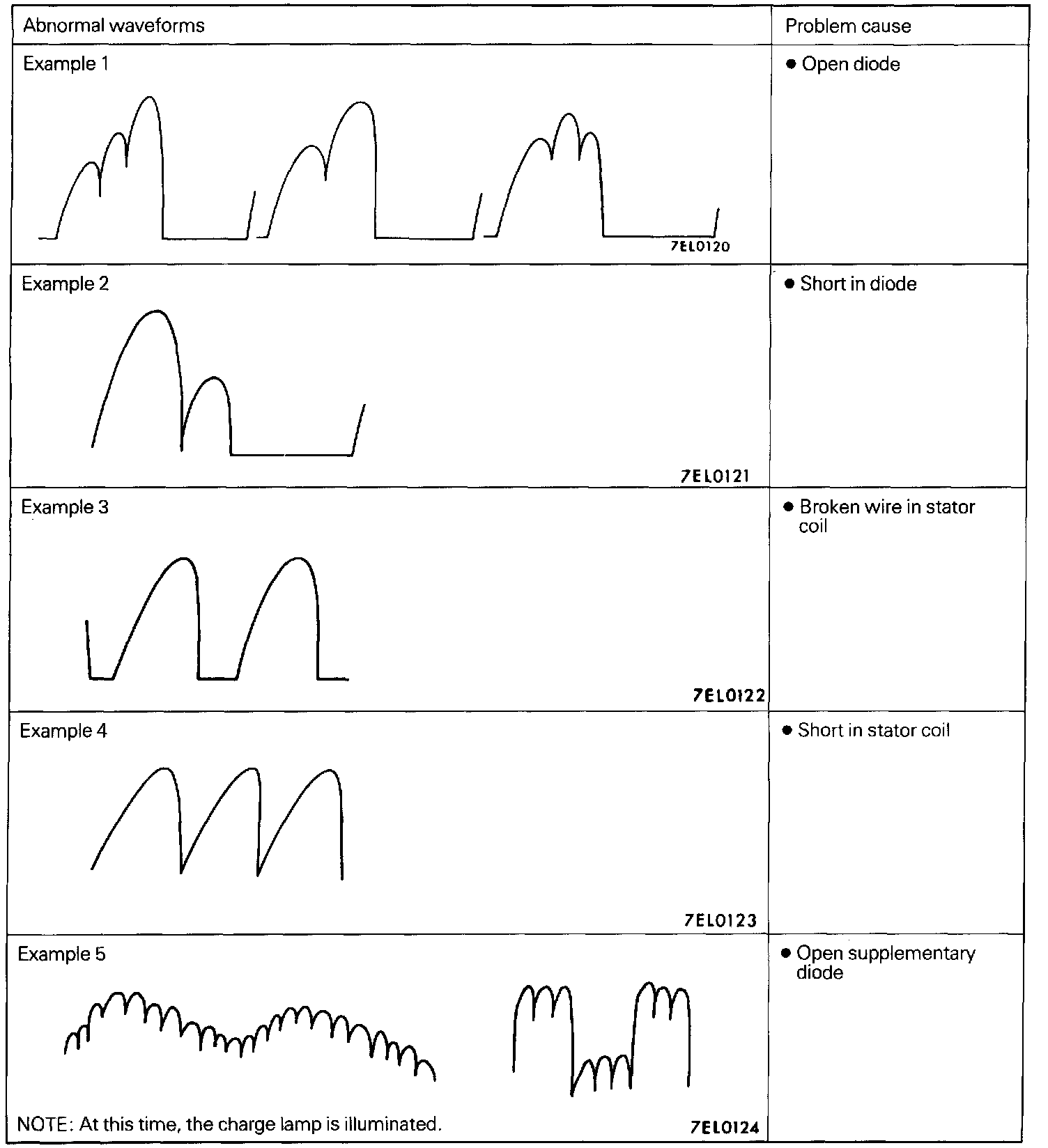

Abnormal Waveforms Examples:

NOTE:
1. The size of the waveform patterns differs largely depending on the adjustment of the variable knob on the analyzer.

2. Identification of abnormal waveforms is easier when there is a large output current (regulator is not operating). (Waveforms can be observed when the headlamps are illuminated.)

3. Check the conditions of the charge lamp (illuminated/not illuminated) also, and carry out a total check.
