Terminal Engagement Check

Terminal Engagement Check:

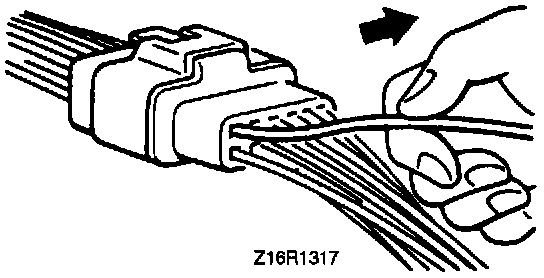

When the terminal stopper of connector is out of order, engagement of male and female terminals becomes improper even when the connector itself is engaged perfectly and the terminal sometimes slips out to the rear side of connector. Make sure that each terminal does not come off the connector by pulling each harness wire.
